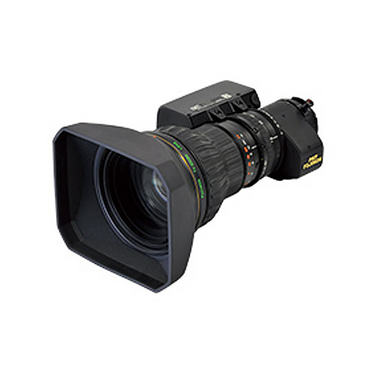

ZA17x7.6BEMD-DSD Remote Control Teleconferencing Lens with 2X Extender

$15,600.00 $13,401.00
(You save $2,199.00)
SKU:
FUJ-ZA17x7.6BEMD-DSD
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Fujinon Remote Control Teleconferencing Lens with 2X Extender

The Fujinon ZA17x7.6BEMD-DSD is a member of the Select Series of value priced standard 2/3" HD Teleconferencing Style lenses. The ZA17x7.6BEMD-DSD includes a 2X Extender.  In addition, the lens incorporates remote control capability for Teleconferencing, Tower Cam, POV and other applications where full analog remote control of zoom, focus and iris is required.

ZA17x7.6BEMD-DSD Features

  • 7.6 - 130 mm focal length. With 2X Extender: 15.2 - 260 mm
  • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
  • 17X zoom range
  • f/1.8 maximum relative aperture at 7.6 - 102 mm and f/2.3 at 130 mm
  • Inner Focus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format:
      • 2/3"
    • Focal Length
      • 1X: 7.6 - 130 mm
      • 2X: 15.2 - 260 mm
    • Zoom Range
      • 17X
    • Maximum Relative Aperture
      • 1 : 1.8 (7.6 - 102 mm)
      • 1 : 2.3 (130 mm)
    • M.O.D. from the Image Plane
      • 0.84 m
    • M.O.D. from the Front of Lens
      • 0.6 m
    • Diameter x Length
      • 85 x 203 mm
    • Shipping Weight (approx.)
      • 6 lbs.

Please see the "Tech Specs" tab for additional information on the Fujinon Remote Control Teleconferencing Lens with 2X Extender.

To see more Fujinon products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Fujinon Remote Control Teleconferencing Lens with 2X Extender

The Fujinon ZA17x7.6BEMD-DSD is a member of the Select Series of value priced standard 2/3" HD Teleconferencing Style lenses. The ZA17x7.6BEMD-DSD includes a 2X Extender.  In addition, the lens incorporates remote control capability for Teleconferencing, Tower Cam, POV and other applications where full analog remote control of zoom, focus and iris is required.

ZA17x7.6BEMD-DSD Features

  • 7.6 - 130 mm focal length. With 2X Extender: 15.2 - 260 mm
  • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
  • 17X zoom range
  • f/1.8 maximum relative aperture at 7.6 - 102 mm and f/2.3 at 130 mm
  • Inner Focus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format:
      • 2/3"
    • Focal Length
      • 1X: 7.6 - 130 mm
      • 2X: 15.2 - 260 mm
    • Zoom Range
      • 17X
    • Maximum Relative Aperture
      • 1 : 1.8 (7.6 - 102 mm)
      • 1 : 2.3 (130 mm)
    • M.O.D. from the Image Plane
      • 0.84 m
    • M.O.D. from the Front of Lens
      • 0.6 m
    • Diameter x Length
      • 85 x 203 mm
    • Shipping Weight (approx.)
      • 6 lbs.

Documentation: Fujinon Remote Control Teleconferencing Lens with 2X Extender
