ZA12x4.5BMD-DSD Super Wide Angle Remote Control Teleconferencing Lens

$22,250.00 $19,270.00
(You save $2,980.00)
SKU:
FUJ-ZA12x4.5BMD-DSD
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

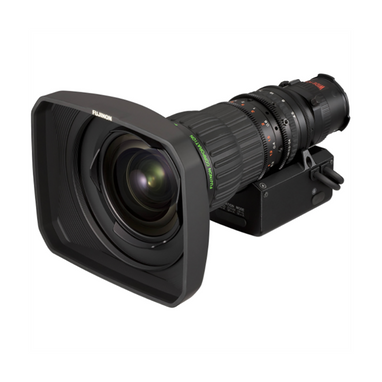

Fujinon Super Wide Angle Remote Control Teleconferencing Lens

The Fujinon ZA12x4.5BMD-DSD is a member of the Select Series of value priced standard 2/3" HD Teleconferencing Style lenses. This model features a super wide angle field of view (4.5 - 54 mm focal length) along with remote control capability for Teleconferencing, Tower Cam, POV and other applications where full analog remote control of zoom, focus and iris is required.

ZA12x4.5BMD-DSD Features

  • Lens
    • 4.5 - 54 mm focal length
    • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
    • 12X zoom range
    • f/1.8 maximum relative aperture at 4.5 - 41 mm and f/2.4 at 54 mm
  • Digi Power
    • New digital servo control system to enhance zoom lens performance. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. Via RS-232 connection, it is now possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications, and raising the level for all production environments.
  • Digital Find System
    • The Focused Intelligent Network Diagnosis system aids in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters.
  • Innerfocus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format
      • 2/3"
    • Focal Length
      • 4.5 - 54 mm
    • Zoom Range
      • 12X
    • Maximum Relative Aperture
      • 1 : 1.8 (4.5 - 41 mm)
      • 1 : 2.4 (54 mm)
    • M.O.D. from the Image Plane
      • 0.59 m
    • M.O.D. from the Front of Lens
      • 0.3 m
    • Diameter x Length
      • 95 x 237.5 mm
    • Shipping Weight (approx.)
      • 7 lbs.

Please see the "Tech Specs" tab for additional information on the Fujinon Super Wide Angle Remote Control Teleconferencing Lens.

To see more Fujinon products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Fujinon Super Wide Angle Remote Control Teleconferencing Lens

The Fujinon ZA12x4.5BMD-DSD is a member of the Select Series of value priced standard 2/3" HD Teleconferencing Style lenses. This model features a super wide angle field of view (4.5 - 54 mm focal length) along with remote control capability for Teleconferencing, Tower Cam, POV and other applications where full analog remote control of zoom, focus and iris is required.

ZA12x4.5BMD-DSD Features

  • Lens
    • 4.5 - 54 mm focal length
    • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
    • 12X zoom range
    • f/1.8 maximum relative aperture at 4.5 - 41 mm and f/2.4 at 54 mm
  • Digi Power
    • New digital servo control system to enhance zoom lens performance. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. Via RS-232 connection, it is now possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications, and raising the level for all production environments.
  • Digital Find System
    • The Focused Intelligent Network Diagnosis system aids in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters.
  • Innerfocus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format
      • 2/3"
    • Focal Length
      • 4.5 - 54 mm
    • Zoom Range
      • 12X
    • Maximum Relative Aperture
      • 1 : 1.8 (4.5 - 41 mm)
      • 1 : 2.4 (54 mm)
    • M.O.D. from the Image Plane
      • 0.59 m
    • M.O.D. from the Front of Lens
      • 0.3 m
    • Diameter x Length
      • 95 x 237.5 mm
    • Shipping Weight (approx.)
      • 7 lbs.

Documentation: Fujinon Super Wide Angle Remote Control Teleconferencing Lens
