ZA12x4.5BEMD-DSD Wide Angle Remote Control Teleconferencing Lens

$26,950.00 $23,336.00
(You save $3,614.00)
SKU:
FUJ-ZA12x4.5BEMD-DSD
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

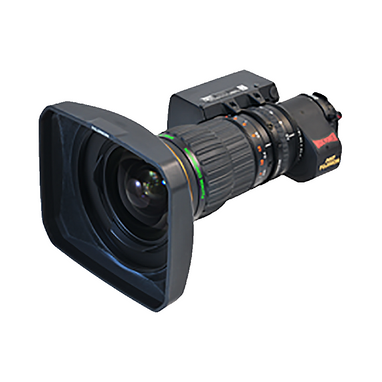

Fujinon Wide Angle Remote Control Teleconferencing Lens

The ZA12x4.5BEMD-DSD is part of Fujinon's Select Series of lenses. Select Series lenses are standard 2/3" HD Teleconferencing Style lenses, but value priced! Fujinon Select Series lenses are designed to meet the performance needs of today's mid-range cameras and to enhance the performance quality of these cameras. The ZA12x4.5BEMD-DSD is a super wide angle lens and includes a 2X Extender.  In addition, the lens incorporates remote control capability for Teleconferencing, Tower Cam, POV or similar applications where full analog remote control of zoom, focus and iris is required.

ZA12x4.5BEMD-DSD Features

  • 4.5 - 54 mm focal length. With 2X Extender: 9 - 108 mm
  • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
  • 12X zoom range
  • f/1.8 maximum relative aperture at 4.5 - 41 mm and f/2.4 at 54 mm
  • Inner Focus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format
      • 2/3"
    • Focal Length
      • 1X: 4.5 - 54 mm
      • 2X: 9 - 108 mm
    • Zoom Range
      • 12X
    • Maximum Relative Aperture
      • 1 : 1.8 (4.5 - 41 mm)
      • 1 : 2.4 (54 mm)
    • M.O.D. from the Image Plane
      • 0.59 m
    • M.O.D. from the Front of Lens
      • 0.3 m
    • Diameter x Length
      • 95 x 237.5 mm
    • Shipping Weight (approx.)
      • 7 lbs.

Please see the "Tech Specs" tab for additional information on the Fujinon Wide Angle Remote Control Teleconferencing Lens.

To see more Fujinon products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Fujinon Wide Angle Remote Control Teleconferencing Lens

The ZA12x4.5BEMD-DSD is part of Fujinon's Select Series of lenses. Select Series lenses are standard 2/3" HD Teleconferencing Style lenses, but value priced! Fujinon Select Series lenses are designed to meet the performance needs of today's mid-range cameras and to enhance the performance quality of these cameras. The ZA12x4.5BEMD-DSD is a super wide angle lens and includes a 2X Extender.  In addition, the lens incorporates remote control capability for Teleconferencing, Tower Cam, POV or similar applications where full analog remote control of zoom, focus and iris is required.

ZA12x4.5BEMD-DSD Features

  • 4.5 - 54 mm focal length. With 2X Extender: 9 - 108 mm
  • Standard remote control of zoom, focus and iris for teleconferencing, tower cam, POV and other applications
  • 12X zoom range
  • f/1.8 maximum relative aperture at 4.5 - 41 mm and f/2.4 at 54 mm
  • Inner Focus System
    • Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
  • Specs
    • Camera Format
      • 2/3"
    • Focal Length
      • 1X: 4.5 - 54 mm
      • 2X: 9 - 108 mm
    • Zoom Range
      • 12X
    • Maximum Relative Aperture
      • 1 : 1.8 (4.5 - 41 mm)
      • 1 : 2.4 (54 mm)
    • M.O.D. from the Image Plane
      • 0.59 m
    • M.O.D. from the Front of Lens
      • 0.3 m
    • Diameter x Length
      • 95 x 237.5 mm
    • Shipping Weight (approx.)
      • 7 lbs.

Documentation: Fujinon Wide Angle Remote Control Teleconferencing Lens
