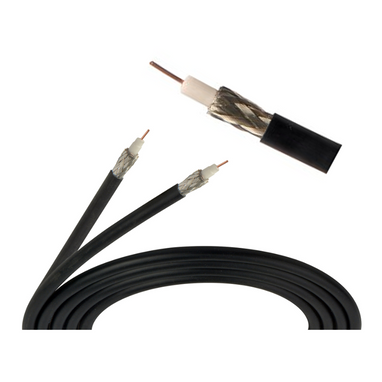

1855A Sub-Miniature 23 AWG Digital Coaxial Cable 1000 ft

$380.00
SKU:
BEL-1855A-0101000
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Belden Sub-Miniature 23 AWG Digital Coaxial Cable 1000 ft

Belden 1855A is a sub-miniature coaxial cable designed for the transmission of digital streams, such as SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080p.  1855A has a small overall nominal diameter, only 0.159 inches, making it ideal for integration in locations where space is at a premium, such as densely packed racks, confined wireways, routers, jackfields or mobile units.  This item is a 1,000 foot (304.8 m) reel of 1855A cable.

General Specifications:

  • Conductor: 23 AWG solid .023" bare copper
  • Insulation: Gas-injected FHDPE - Foam High Density Polyethylene
  • Shielding: Duofoil® + tinned copper braid shield (95% coverage).  The Duofoil® shield is composed of metallic foil, which is applied to both sides of a polyester film.
  • Jacket: PVC (Polyvinyl Chloride)

Additional Specifications:

  • Impedance: 75 Ohm
  • Overall Nominal Diameter: 0.159 inches
  • Maximum Recommended Pulling Tension: 40 lbs.
  • Minimum Bend Radius/Minor Axis: 1.500 inches
  • Specs
    • Outer Diameter (OD)
      • 0.159 Inches (Nominal)
    • Stranding
      • Solid
    • Shielding
      • Duofoil® + Tinned Copper Braid
    • # of Conductors
      • 1
    • Length
      • 1,000 ft. (305m)
    • Weight
      • 20 lbs (1,000 ft. Reel)
    • Plenum (Y/N)
      • No

Please refer to the links below if you would like to see further technical specifications, details and information:

Belden Blog post on the development of proper 75 Ohm connectors for digital signal use

Please see the "Tech Specs" tab for additional information on the Belden Sub-Miniature 23 AWG Digital Coaxial Cable 1000 ft.

To see more Belden products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Belden Sub-Miniature 23 AWG Digital Coaxial Cable 1000 ft

Belden 1855A is a sub-miniature coaxial cable designed for the transmission of digital streams, such as SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080p.  1855A has a small overall nominal diameter, only 0.159 inches, making it ideal for integration in locations where space is at a premium, such as densely packed racks, confined wireways, routers, jackfields or mobile units.  This item is a 1,000 foot (304.8 m) reel of 1855A cable.

General Specifications:

  • Conductor: 23 AWG solid .023" bare copper
  • Insulation: Gas-injected FHDPE - Foam High Density Polyethylene
  • Shielding: Duofoil® + tinned copper braid shield (95% coverage).  The Duofoil® shield is composed of metallic foil, which is applied to both sides of a polyester film.
  • Jacket: PVC (Polyvinyl Chloride)

Additional Specifications:

  • Impedance: 75 Ohm
  • Overall Nominal Diameter: 0.159 inches
  • Maximum Recommended Pulling Tension: 40 lbs.
  • Minimum Bend Radius/Minor Axis: 1.500 inches
  • Specs
    • Outer Diameter (OD)
      • 0.159 Inches (Nominal)
    • Stranding
      • Solid
    • Shielding
      • Duofoil® + Tinned Copper Braid
    • # of Conductors
      • 1
    • Length
      • 1,000 ft. (305m)
    • Weight
      • 20 lbs (1,000 ft. Reel)
    • Plenum (Y/N)
      • No

Please refer to the links below if you would like to see further technical specifications, details and information:

Belden Blog post on the development of proper 75 Ohm connectors for digital signal use

Documentation: Belden Sub-Miniature 23 AWG Digital Coaxial Cable 1000 ft
