1694A Low Loss 18 AWG Serial Digital Coaxial Cable RG-6/U 1000 ft

$526.00
SKU:
BEL-1694A-0101000
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Belden Low Loss 18 AWG Serial Digital Coaxial Cable RG-6/U 1000 ft

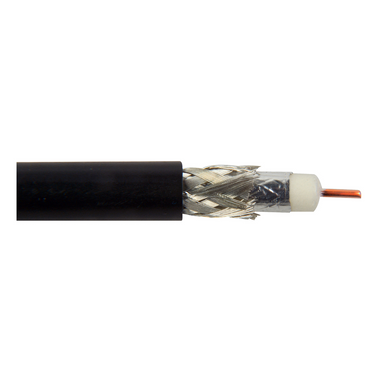

Belden 1694A coaxial cable is a low loss 18 AWG RG-6/U cable specially designed for handling the transmission of digital streams, such as SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080p.  Boasting superior signal quality, Belden 1694A is an excellent choice for situations requiring long runs.  This item is a 1,000 foot (304.8 m) reel of 1694A cable.

General Specifications:

  • Conductor: 18 AWG solid .040" bare copper
  • Insulation: Gas-injected FHDPE - Foam High Density Polyethylene
  • Shielding: Duofoil® + tinned copper braid shield (95% coverage).  The Duofoil® shield is composed of metallic foil, which is applied to both sides of a polyester film.
  • Jacket: PVC (Polyvinyl Chloride)

Additional Specifications:

  • Impedance: 75 Ohm
  • Overall Nominal Diameter: 0.274 inches
  • Maximum Recommended Pulling Tension: 69 lbs.
  • Minimum Bend Radius/Minor Axis: 2.750 inches
  • Specs
    • AWG
      • 18 AWG .040 Inch Bare Copper
    • Outer Diameter (OD)
      • 0.274 Inches (Nominal)
    • Stranding
      • Solid
    • Shielding
      • Duofoil® + Tinned Copper Braid
    • # of Conductors
      • 1
    • Length
      • 1,000 ft. (305m)
    • Weight
      • 45 lbs (1,000 ft. Reel)
    • Plenum (Y/N)
      • No

Please refer to the link below if you would like to see further technical specifications, details and information:

Belden Blog post on the development of proper 75 Ohm connectors for digital signal use

Please see the "Tech Specs" tab for additional information on the Belden Low Loss 18 AWG Serial Digital Coaxial Cable RG-6/U 1000 ft.
