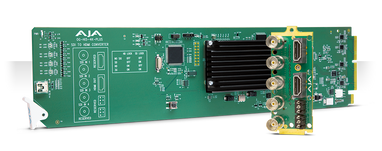

OG-Hi5-4K-Plus 4x 3G-SDI to HDMI 2.0 with up to UltraHD 60p, HD-SDI to HD-HDMI

$835.00
SKU:
AJA-OG-Hi5-4K-Plus
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

AJA 4x 3G-SDI to HDMI 2.0 with up to UltraHD 60p, HD-SDI to HD-HDMI

OG-Hi5-4K-Plus is an openGear card that offers 3G-SDI to HDMI 2.0 conversion for 4K/UltraHD/2K/HD/SD sources, supporting up to 60p from professional 4K/UltraHD devices when monitoring to HDMI 2.0 displays. OG-Hi5-4K-Plus generates HDR metadata in accordance with HDMI v2.0a/CTA-861.3 and offers a simple monitoring connection from 4K devices with Quad 3G-SDI or Dual 3G-SDI outputs to compatible HDMI 2.0 displays, with two sample interleave (2SI) or square division (Quadrant) source mapping.

Designed for use in high-density openGear 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

  • openGear compatible card
  • 4x 3G-SDI inputs
  • Support for 4:2:2/4:4:4 HDMI 2.0 output
  • Controlled by DashBoard network control software
  • HD conversion supported
  • HDR support for HDR 10 and HLG
  • Embedded audio support
  • Use with openGear 2RU frames including AJA’s OG-3-FR frame
  • Five year warranty

Download DashBoard Software

Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit:

http://www.opengear.tv/dashboard-software/#support_box

Connectivity

The latest generation of affordable 4K monitors utilize an HDMI 2.0 connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer monitors. OG-Hi5-4K-Plus is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

OG-Hi5-4K Plus provides this support for your 4K/UltraHD/HD HDR pipelines to
HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0a/CTA-861.3. OG-Hi5-4K-Plus also provides support for Hybrid Log-Gamma (HLG) HDR displays over HDMI.

4K and UltraHD

Typical 4K signals use a resolution of 4096x2160 pixels while UltraHD signals measure 3840x2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. OG-Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

OG-Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60p can be fed into OG-Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

  • openGear Compatibility
    • The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
  • Flexible I/O
    • The modular rear panel allows custom I/O connections per card (included with individual cards).
  • Failsafe
    • The optional redundant power supply provides a secondary power source in the event of a primary power failure.
  • Ethernet Access
    • A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
  • AJA Quality Guaranteed
    • All AJA products are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.
  • AJA Mini-Matrix
    • Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.
    • Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
  • Video Formats
    • 4K
      • 4096 x 2160p
    • UltraHD
      • 3840 x 2160p
    • 2K
      • 2048 x 1080p
    • HD
      • 1920 x 1080p
      • 1920 x 1080i
      • 1280 x 720p
    • SD
      • 720 x 576i
      • 720 x 480i
  • Video
    • Input Digital
      • 4x 3G-SDI BNC, SMPTE-259/292/424
      • YCbCr 4:2:2/4:4:4
      • RGB 4:4:4, SMPTE or Full level
      • 8 or 10-bit
      • Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
      • 4x 3 Gb SDI (Level A or B-Dual Link)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
      • 4x 1.5 Gb SDI
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
      • 2x 3 Gb SDI (Level B-Dual Stream)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
      • 1x 3 Gb SDI (Level A or B-Dual Link)
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 50, 59.94, 60
        • (HD) 1280 x 720p** 50, 59.94, 60
      • 2x 1.5 Gb SDI
        • (HD) 1920 x 1080p 50, 59.94, 60
      • 1x 1.5 Gb SDI
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 50, 59.94, 60
        • (HD) 1280 x 720p 50, 59.94, 60
      • 1x 270 Mb SDI
        • (SD) 625i 50
        • (SD) 525i 59.94
      • *PsF is Level B-Dual Link
      • **1280 x 720p is Level A Only
    • Output Digital
      • 1 x HDMI Type A connector*, HDMI v2.0
      • YCbCr 4:2:2/4:4:4/4:2:0
      • RGB 4:4:4, SMPTE or Full level
      • 8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
      • HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
      • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 720 x 576i 50
      • (SD) 720 x 480i 59.94
      • *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
  • Audio
    • Input Digital
      • SDI embedded audio, 24-bit, 8-Channel
    • Output Digital
      • HDMI embedded audio, 24-bit, 8-Channel
    • I/O
      • 8-Channel embedded SDI audio input
      • 8-Channel HDMI audio output
  • User Controls
    • openGear DashBoard network control software
      • Windows, macOS or Linux
  • Shipping
    • Size (w x d x h)
      • openGear standard form factor, front slot and rear card. Two slots required for each card.
    • Weight
      • 0.5 lb (0.3 kg)
  • Power
    • openGear frame compatible
      • 12.0 watts max per card
  • Environment
    • Safe Operating Temperature
      • 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF)
      • -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity
      • 10-90% noncondensing
    • Operating Altitude
      • <3,000 meters (<10,000 feet)

Please see the "Tech Specs" tab for additional information on the AJA 4x 3G-SDI to HDMI 2.0 with up to UltraHD 60p, HD-SDI to HD-HDMI.

To see more AJA products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: AJA 4x 3G-SDI to HDMI 2.0 with up to UltraHD 60p, HD-SDI to HD-HDMI

OG-Hi5-4K-Plus is an openGear card that offers 3G-SDI to HDMI 2.0 conversion for 4K/UltraHD/2K/HD/SD sources, supporting up to 60p from professional 4K/UltraHD devices when monitoring to HDMI 2.0 displays. OG-Hi5-4K-Plus generates HDR metadata in accordance with HDMI v2.0a/CTA-861.3 and offers a simple monitoring connection from 4K devices with Quad 3G-SDI or Dual 3G-SDI outputs to compatible HDMI 2.0 displays, with two sample interleave (2SI) or square division (Quadrant) source mapping.

Designed for use in high-density openGear 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

  • openGear compatible card
  • 4x 3G-SDI inputs
  • Support for 4:2:2/4:4:4 HDMI 2.0 output
  • Controlled by DashBoard network control software
  • HD conversion supported
  • HDR support for HDR 10 and HLG
  • Embedded audio support
  • Use with openGear 2RU frames including AJA’s OG-3-FR frame
  • Five year warranty

Download DashBoard Software

Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit:

http://www.opengear.tv/dashboard-software/#support_box

Connectivity

The latest generation of affordable 4K monitors utilize an HDMI 2.0 connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer monitors. OG-Hi5-4K-Plus is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

OG-Hi5-4K Plus provides this support for your 4K/UltraHD/HD HDR pipelines to
HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0a/CTA-861.3. OG-Hi5-4K-Plus also provides support for Hybrid Log-Gamma (HLG) HDR displays over HDMI.

4K and UltraHD

Typical 4K signals use a resolution of 4096x2160 pixels while UltraHD signals measure 3840x2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. OG-Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

OG-Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60p can be fed into OG-Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

  • openGear Compatibility
    • The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
  • Flexible I/O
    • The modular rear panel allows custom I/O connections per card (included with individual cards).
  • Failsafe
    • The optional redundant power supply provides a secondary power source in the event of a primary power failure.
  • Ethernet Access
    • A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
  • AJA Quality Guaranteed
    • All AJA products are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.
  • AJA Mini-Matrix
    • Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.
    • Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
  • Video Formats
    • 4K
      • 4096 x 2160p
    • UltraHD
      • 3840 x 2160p
    • 2K
      • 2048 x 1080p
    • HD
      • 1920 x 1080p
      • 1920 x 1080i
      • 1280 x 720p
    • SD
      • 720 x 576i
      • 720 x 480i
  • Video
    • Input Digital
      • 4x 3G-SDI BNC, SMPTE-259/292/424
      • YCbCr 4:2:2/4:4:4
      • RGB 4:4:4, SMPTE or Full level
      • 8 or 10-bit
      • Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
      • 4x 3 Gb SDI (Level A or B-Dual Link)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
      • 4x 1.5 Gb SDI
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
      • 2x 3 Gb SDI (Level B-Dual Stream)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
      • 1x 3 Gb SDI (Level A or B-Dual Link)
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 50, 59.94, 60
        • (HD) 1280 x 720p** 50, 59.94, 60
      • 2x 1.5 Gb SDI
        • (HD) 1920 x 1080p 50, 59.94, 60
      • 1x 1.5 Gb SDI
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 50, 59.94, 60
        • (HD) 1280 x 720p 50, 59.94, 60
      • 1x 270 Mb SDI
        • (SD) 625i 50
        • (SD) 525i 59.94
      • *PsF is Level B-Dual Link
      • **1280 x 720p is Level A Only
    • Output Digital
      • 1 x HDMI Type A connector*, HDMI v2.0
      • YCbCr 4:2:2/4:4:4/4:2:0
      • RGB 4:4:4, SMPTE or Full level
      • 8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
      • HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
      • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 720 x 576i 50
      • (SD) 720 x 480i 59.94
      • *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
  • Audio
    • Input Digital
      • SDI embedded audio, 24-bit, 8-Channel
    • Output Digital
      • HDMI embedded audio, 24-bit, 8-Channel
    • I/O
      • 8-Channel embedded SDI audio input
      • 8-Channel HDMI audio output
  • User Controls
    • openGear DashBoard network control software
      • Windows, macOS or Linux
  • Shipping
    • Size (w x d x h)
      • openGear standard form factor, front slot and rear card. Two slots required for each card.
    • Weight
      • 0.5 lb (0.3 kg)
  • Power
    • openGear frame compatible
      • 12.0 watts max per card
  • Environment
    • Safe Operating Temperature
      • 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF)
      • -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity
      • 10-90% noncondensing
    • Operating Altitude
      • <3,000 meters (<10,000 feet)
