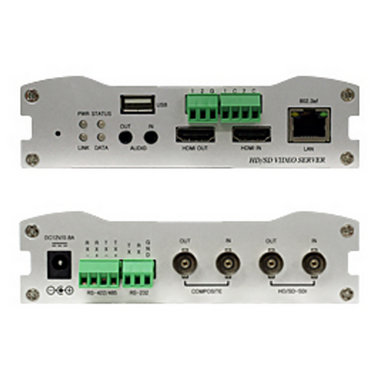

VS-102-HDSDI 2.0 MP High Resolution Encoder & Decoder w/ HD-SDI

$2,059.00 $1,750.15
(You save $308.85)
SKU:
MAR-VS-102-HDSDI
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Marshall 2.0 MP High Resolution Encoder & Decoder w/ HD-SDI

The Marshall VS-102-HDSDI is a High Definition Video Server that allows real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signal along with bi-directional AAC encoded high definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDSDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network, while providing optimal video transmission quality even in networks with limited bandwidth.

The VS-102-HDSDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDSDI located in a Green Room or other location. The other unit can act as a decoder which receives the compressed data through the LAN and restores the data to its' original high definition state. Additionally, other computers or VS-102-HDSDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or other area at the same time. When properly configured, the VS-102-HDSDI may be simultaneously monitored through the internet.

Check out the extensive list of features in the Marshall VS-102-HDSDI!

VS-102-HDSDI Features

  • High Quality AV Encoder / Decoder (User Selectable)
  • Full HD resolution 1080p Encoding / Decoding
  • Up to 30fps @ 1920 x 1080 streaming
  • H.264 & H.264 MJPEG Dual Streaming
  • Two-Way Audio Communication
  • Mono Codec G.711 for Security applications
  • Stereo Codec AAC for Broadcast applications
  • HD-SDI Video Input / Output
  • HDMI Video Input / Output
  • Composite Video Input / Output
  • Audio Input / Output
  • Instant Recording to an optional USB drive (USB 2.0)
  • Built-in PoE (Power Over Ethernet: 802af)
  • RS-232 & RS-422/485 control built-in
  • Integrated Video Motion Detection
  • Transmission of Video Data through FTP server
  • Wide Range of Video Bit Rate Control (32kbps ~ 10Mbps)
  • PSIA and ONVIF compliant
  • Specs
    • System Mode
      • Encoder, Decoder
    • Network Interface
      • Ethernet 10 / 100Base-T (RJ-45)
    • Network Protocol
      • TCP/IP
      • UDP
      • Multicast
      • DHCP
      • SMTP
      • HTTP
      • SNMP
      • RTP
      • RTSP
    • Standards
      • Main Stream: H.264
      • Secondary Stream: H.264/MJPEG
    • Bitrate
      • 32 ~ 10,240 Kbps
    • Resolution
      • 1920x1080/60i ~ 352x240/30fps, 18 resolution step
    • Frame Rate Range
      • 1 ~ 30fps
  • Video Inputs & Outputs
    • Input 1
      • 1 x HDMI type-A, HDMI RX
    • Input 2
      • 1 x BNC: HD-SDI
    • Output 1
      • 1 x HDMI type-A, HDMI TX
    • Output 2
      • 1 x BNC: HD-SDI
  • Audio Input & Output
    • Input
      • 1 x Line-In (Mini-Stereo)
    • Output
      • 1 x Line-Out (Mini-Stereo)
  • Power
    • Source
      • DC 12V/0.8A, PoE(Power over Ethernet): 802.3af
    • Consumption
      • Max 9.6W
  • Dimensions
    • Rack Unit Dimensions (WHD)
      • 5.3" x 5" x 1.4"
  • Shipping
    • Weight (approx.)
      • 3 lbs.

Please see the "Tech Specs" tab for additional information on the Marshall 2.0 MP High Resolution Encoder & Decoder w/ HD-SDI.

To see more Marshall products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Marshall 2.0 MP High Resolution Encoder & Decoder w/ HD-SDI

The Marshall VS-102-HDSDI is a High Definition Video Server that allows real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signal along with bi-directional AAC encoded high definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDSDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network, while providing optimal video transmission quality even in networks with limited bandwidth.

The VS-102-HDSDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDSDI located in a Green Room or other location. The other unit can act as a decoder which receives the compressed data through the LAN and restores the data to its' original high definition state. Additionally, other computers or VS-102-HDSDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or other area at the same time. When properly configured, the VS-102-HDSDI may be simultaneously monitored through the internet.

Check out the extensive list of features in the Marshall VS-102-HDSDI!

VS-102-HDSDI Features

  • High Quality AV Encoder / Decoder (User Selectable)
  • Full HD resolution 1080p Encoding / Decoding
  • Up to 30fps @ 1920 x 1080 streaming
  • H.264 & H.264 MJPEG Dual Streaming
  • Two-Way Audio Communication
  • Mono Codec G.711 for Security applications
  • Stereo Codec AAC for Broadcast applications
  • HD-SDI Video Input / Output
  • HDMI Video Input / Output
  • Composite Video Input / Output
  • Audio Input / Output
  • Instant Recording to an optional USB drive (USB 2.0)
  • Built-in PoE (Power Over Ethernet: 802af)
  • RS-232 & RS-422/485 control built-in
  • Integrated Video Motion Detection
  • Transmission of Video Data through FTP server
  • Wide Range of Video Bit Rate Control (32kbps ~ 10Mbps)
  • PSIA and ONVIF compliant
  • Specs
    • System Mode
      • Encoder, Decoder
    • Network Interface
      • Ethernet 10 / 100Base-T (RJ-45)
    • Network Protocol
      • TCP/IP
      • UDP
      • Multicast
      • DHCP
      • SMTP
      • HTTP
      • SNMP
      • RTP
      • RTSP
    • Standards
      • Main Stream: H.264
      • Secondary Stream: H.264/MJPEG
    • Bitrate
      • 32 ~ 10,240 Kbps
    • Resolution
      • 1920x1080/60i ~ 352x240/30fps, 18 resolution step
    • Frame Rate Range
      • 1 ~ 30fps
  • Video Inputs & Outputs
    • Input 1
      • 1 x HDMI type-A, HDMI RX
    • Input 2
      • 1 x BNC: HD-SDI
    • Output 1
      • 1 x HDMI type-A, HDMI TX
    • Output 2
      • 1 x BNC: HD-SDI
  • Audio Input & Output
    • Input
      • 1 x Line-In (Mini-Stereo)
    • Output
      • 1 x Line-Out (Mini-Stereo)
  • Power
    • Source
      • DC 12V/0.8A, PoE(Power over Ethernet): 802.3af
    • Consumption
      • Max 9.6W
  • Dimensions
    • Rack Unit Dimensions (WHD)
      • 5.3" x 5" x 1.4"
  • Shipping
    • Weight (approx.)
      • 3 lbs.
