B422-FI6T/24 2x24 Internally Programmable RS-422 2RU patchbay, DE-9

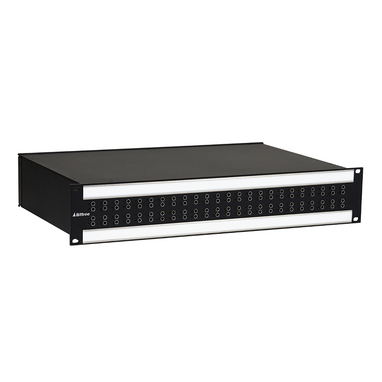

Bittree B422-N16T/24 RS-422 Internally Programmable Patchbay - Front
$1,196.00
SKU:
BIT-B422-FI6T-24
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Request Services

Bittree 2x24 Internally Programmable RS-422 2RU patchbay, DE-9

The Bittree 2 RU Internally Programmable RS-422 patchbay with 2 rows of 24 TT (Bantam) jacks (2x24) on the front panel and DE9-F connectors on the rear interface.  Select your normalling configuration for full or non-normalled.  Circuits can be reprogrammed via shunts to full, half, or non-normalled configurations.

Features

  • Six-wire circuits handle RS-422 signals and provide two extra circuits for additional applications and protocols
  • Use for bi-directional signals, such as SMPTE 207M, RS-422, RS-424, RS-232
  • Applicable for other general-purpose interface (GPI) applications
  • Front panel patching is via TT (Bantam) jacks
  • Rear panel interface is populated with DE-9 connectors
  • Specs
    • Layout
      • 2 Rows of 24 Channels
    • Height
      • 2-RU (3.5 Inches)
    • Normalling
      • Select option for Full or Non-Normalled.
      • Circuits can be reprogrammed.
    • Connections
      • TT (Bantam) Jacks (Front Panel)
      • DE9-F Rear Interface
    • Front Panel
      • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Front Panel Color
      • Black
    • Weight
      • 13 lbs

Please refer to the link below for technical drawing specifications:

Bittree 2-RU 2x24 RS-422 Patchbay Technical Drawing

Please see the "Tech Specs" tab for additional information on the Bittree 2x24 Internally Programmable RS-422 2RU patchbay, DE-9.

To see more Bittree products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Bittree 2x24 Internally Programmable RS-422 2RU patchbay, DE-9

The Bittree 2 RU Internally Programmable RS-422 patchbay with 2 rows of 24 TT (Bantam) jacks (2x24) on the front panel and DE9-F connectors on the rear interface.  Select your normalling configuration for full or non-normalled.  Circuits can be reprogrammed via shunts to full, half, or non-normalled configurations.

Features

  • Six-wire circuits handle RS-422 signals and provide two extra circuits for additional applications and protocols
  • Use for bi-directional signals, such as SMPTE 207M, RS-422, RS-424, RS-232
  • Applicable for other general-purpose interface (GPI) applications
  • Front panel patching is via TT (Bantam) jacks
  • Rear panel interface is populated with DE-9 connectors
  • Specs
    • Layout
      • 2 Rows of 24 Channels
    • Height
      • 2-RU (3.5 Inches)
    • Normalling
      • Select option for Full or Non-Normalled.
      • Circuits can be reprogrammed.
    • Connections
      • TT (Bantam) Jacks (Front Panel)
      • DE9-F Rear Interface
    • Front Panel
      • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Front Panel Color
      • Black
    • Weight
      • 13 lbs

Please refer to the link below for technical drawing specifications:

Bittree 2-RU 2x24 RS-422 Patchbay Technical Drawing
