B422-FI6S/12 1 RU 2x12 Internally Programmable RS-422 Patchbay

$912.00
SKU:
BIT-B422-FI6S-12
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

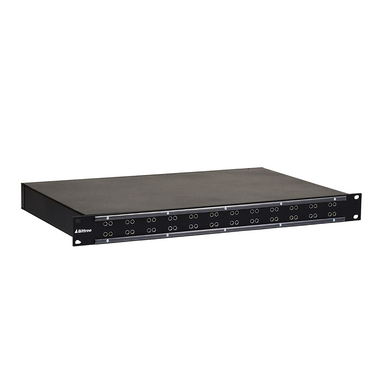

Bittree 1 RU 2x12 Internally Programmable RS-422 Patchbay

The Bittree 1-RU Internally Programmable RS-422 patchbay is formatted with 2 rows of 12 TT (Bantam) jacks on the front panel (2x12) and DE9-F connectors on the rear panel.  Select your normalling option for full or non-normalled configuration. However, the circuits can be reprogrammed via shunts to full, half, or non-normalled configurations.

Features

  • Six-wire circuits handle RS-422 signals and provide two extra circuits for additional applications and protocols
  • Use for bi-directional signals, such as SMPTE 207M, RS-422, RS-424, RS-232
  • Applicable for other general-purpose interface (GPI) applications
  • Front panel patching is via TT (Bantam) jacks
  • Rear panel interface is populated with DE-9 connectors
  • Two designation strips
  • Specs
    • Layout
      • 2 Rows of 12 Channels
    • Height
      • 1-RU (1.75 Inches)
    • Normalling
      • Select option for full (default) or non-normalled.
      • Reprogrammable to Full, Half or Non-Normalled
    • Connections
      • TT (Bantam) Jacks (Front Panel)
      • DE9-F Rear Interface
    • Front Panel
      • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Front Panel Color
      • Black
    • Weight
      • 10 lbs

Please see the "Tech Specs" tab for additional information on the Bittree 1 RU 2x12 Internally Programmable RS-422 Patchbay.

To see more Bittree products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Bittree 1 RU 2x12 Internally Programmable RS-422 Patchbay

The Bittree 1-RU Internally Programmable RS-422 patchbay is formatted with 2 rows of 12 TT (Bantam) jacks on the front panel (2x12) and DE9-F connectors on the rear panel.  Select your normalling option for full or non-normalled configuration. However, the circuits can be reprogrammed via shunts to full, half, or non-normalled configurations.

Features

  • Six-wire circuits handle RS-422 signals and provide two extra circuits for additional applications and protocols
  • Use for bi-directional signals, such as SMPTE 207M, RS-422, RS-424, RS-232
  • Applicable for other general-purpose interface (GPI) applications
  • Front panel patching is via TT (Bantam) jacks
  • Rear panel interface is populated with DE-9 connectors
  • Two designation strips
  • Specs
    • Layout
      • 2 Rows of 12 Channels
    • Height
      • 1-RU (1.75 Inches)
    • Normalling
      • Select option for full (default) or non-normalled.
      • Reprogrammable to Full, Half or Non-Normalled
    • Connections
      • TT (Bantam) Jacks (Front Panel)
      • DE9-F Rear Interface
    • Front Panel
      • 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
    • Front Panel Color
      • Black
    • Weight
      • 10 lbs

Documentation: Bittree 1 RU 2x12 Internally Programmable RS-422 Patchbay
