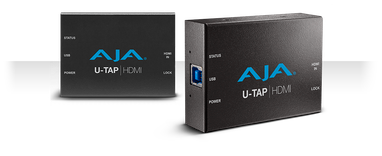

AJA HD/SD USB 3.0 Capture Device for Mac/Windows/Linux With HDMI Input
U-TAP HDMI offers USB 3.0 connectivity including bus power and the ability to simply and easily capture video and audio across HDMI for use with a wide range of software without any drivers to install, empowering your projects anywhere you travel.
Pocket Power
U-TAP HDMI is smaller than a smart phone, and is incredibly useful in the field, on set or at a studio where USB connectivity provides a quick and easy way to obtain HDMI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.
U-TAP HDMI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects, perfect for live events and fast moving subjects.
U-TAP HDMI, pocket power to go.
Software Compatibility
U-TAP HDMI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatability with a wide range of professional software applications and a seamless integration between the native software and AJA’s high quality hardware letting you focus on the work, not the technology.
Connections
Straight forward connectivity
- USB 3.0 host interface
- HDMI Input
- Video Formats
- Video (HDMI)
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625p 25
- (SD) 625i 50
- (SD) 525p 29.97
- (SD) 525i 59.94
- Computer (HDMI)
- Up to 60 Hz max for all formats
- 1920 x 1080p
- 1680 x 1050p
- 1600 x 1200p
- 1600 x 1024p
- 1280 x 1024p
- 1280 x 960p
- 1280 x 768p
- 1024 x 768p
- 800 x 600p
- 640 x 480p
- Scaled (USB)
- Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
- 1920 x 1080p
- 1440 x 1080p
- 1280 x 720p
- 1024 x 576p
- 960 x 540p
- 856 x 480p
- 800 x 600p
- 768 x 576p
- 720 x 576p
- 720 x 480p
- 640 x 480p
- 640 x 360p
- 432 x 240p
- 352 x 288p
- 320 x 240p
- 176 x 144p
- Digital Input
- Video
- HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV
- Audio
- 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate
- Capture
- Video
- 16-bits/pixel, YUV (input video will be truncated as required)
- Audio
- 2-Channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
- Host
- Interface
- USB 3.0/USB 2.0 UVC compliant
- Physical
- Size (w x d x h)
- 3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)
- Weight
- 0.3 lb (0.2 kg)
- Power
- USB bus powered
- 5V
- Maximum
- 3.5W
- Environment
- Safe Operating Temperature
- 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF)
- -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity
- 10-90% noncondensing
- Operating Altitude
- <3,000 meters (<10,000 feet)
Please see the "Tech Specs" tab for additional information on the AJA HD/SD USB 3.0 Capture Device for Mac/Windows/Linux With HDMI Input.
To see more AJA products available on the Broadcast Integration Services website, please click or tap here.
Technical Specifications: AJA HD/SD USB 3.0 Capture Device for Mac/Windows/Linux With HDMI Input
U-TAP HDMI offers USB 3.0 connectivity including bus power and the ability to simply and easily capture video and audio across HDMI for use with a wide range of software without any drivers to install, empowering your projects anywhere you travel.
Pocket Power
U-TAP HDMI is smaller than a smart phone, and is incredibly useful in the field, on set or at a studio where USB connectivity provides a quick and easy way to obtain HDMI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.
U-TAP HDMI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects, perfect for live events and fast moving subjects.
U-TAP HDMI, pocket power to go.
Software Compatibility
U-TAP HDMI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatability with a wide range of professional software applications and a seamless integration between the native software and AJA’s high quality hardware letting you focus on the work, not the technology.
Connections
Straight forward connectivity
- USB 3.0 host interface
- HDMI Input
- Video Formats
- Video (HDMI)
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625p 25
- (SD) 625i 50
- (SD) 525p 29.97
- (SD) 525i 59.94
- Computer (HDMI)
- Up to 60 Hz max for all formats
- 1920 x 1080p
- 1680 x 1050p
- 1600 x 1200p
- 1600 x 1024p
- 1280 x 1024p
- 1280 x 960p
- 1280 x 768p
- 1024 x 768p
- 800 x 600p
- 640 x 480p
- Scaled (USB)
- Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
- 1920 x 1080p
- 1440 x 1080p
- 1280 x 720p
- 1024 x 576p
- 960 x 540p
- 856 x 480p
- 800 x 600p
- 768 x 576p
- 720 x 576p
- 720 x 480p
- 640 x 480p
- 640 x 360p
- 432 x 240p
- 352 x 288p
- 320 x 240p
- 176 x 144p
- Digital Input
- Video
- HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV
- Audio
- 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate
- Capture
- Video
- 16-bits/pixel, YUV (input video will be truncated as required)
- Audio
- 2-Channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
- Host
- Interface
- USB 3.0/USB 2.0 UVC compliant
- Physical
- Size (w x d x h)
- 3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)
- Weight
- 0.3 lb (0.2 kg)
- Power
- USB bus powered
- 5V
- Maximum
- 3.5W
- Environment
- Safe Operating Temperature
- 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF)
- -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity
- 10-90% noncondensing
- Operating Altitude
- <3,000 meters (<10,000 feet)
