Marshall 1080p60 Full HD Video Encoder w/ Embedded Audio
The Marshall VS-103E-3GSDI is a 1080p60 Full High Definition Video Encoder with Embedded Audio functionality. The VS-103E-3GSDI can encode 2 channels of Embedded Audio from HDMI or HDSDI input. It supports 60fps at 1920 x 1080 resolution. The Encoder is a video and audio transmission system that provides broadcast quality audio and video, based on an IP network through LAN, ADSL/VDSL, and wireless LAN. The VS-103E-3GSDI Encoder compresses and transmits media data using a highly efficient H.264 & MJPEG compression algorithm and features a wide range of transmission rates: from 32kbps to 16mbps. This helps to provide optimal video transmission quality even on networks with limited bandwidth.
Check out the impressive list of features in the Marshall VS-103E-3GSDI!
VS-103E-3GSDI Features
- Supports 60fps at 1920 x 1080 Resolution
- Encodes 2 channels of Embedded Audio from HDMI or HDSDI input
- Full HD resolution 1080p Encoding / Decoding
- 3G-HD/SD-SDI, HDMI and Composite video inputs
- Dual Streaming (H.264/H.264, H.264/MJPEG)
- MPEG2-TS Supported
- Two-Way Audio Communication (G.711, AAC)
- HD/ SD-SDI, HDMI & Analog input Audio
- Over 30 Types of PTZ Protocol Supported
- Compliant with ONVIF, PSIA
- PoE (Power Over Ethernet 802.3af)
- USB Recording
- Watchdog for System Recovery
- RS-232, RS-422/485 Communication
- Motion Detection
- 2CH Sensor Input / 2CH Alarm Output
- Adjustable Video Bitrate: 32Kbps ~ 16Mbps for Primary Video, 32Kbps ~ 1Mbps for Secondary Video
- Adjustable Video Data Bandwidth: 2,400bps ~ 115,200bps
- Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
- Includes power supply for applications not utilizing PoE
- Specs
- System Mode
- Encoder
- Encoding Mode
- Normal / MPEG2-TS mode
- Network Interface
- Ethernet 10 / 100Base-T (RJ-45)
- Network Protocol
- TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, HTTPS, SNMP, RTP, RTSP,PSIA, ONVIF
- Compression
- Main Stream: H.264 / Secondary Stream: H.264/MJPEG
- Data Rate
- 32 Kbps ~ 8 Mbps
- Resolution
- 1920x1080/p60 ~ 352x240/30fps, 18 resolution step
- PC Resolution
- HDMI Input format
- 800 x 600
- 1280 x 1024
- 1440 x 900
- 1440 x 900

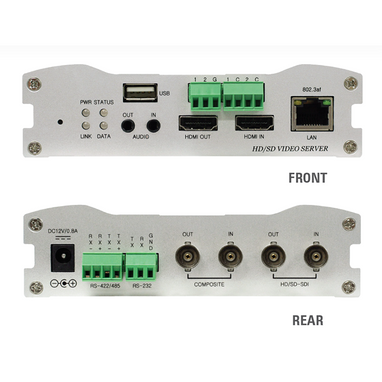

- Video Inputs & Outputs
- Input 1
- 1 x HDMI type-A, HDMI RX
- Input 2
- 1 x Composite (BNC Type)
- Input 3
- 1 x HD/SD-SDI (BNC Type) (VS-103E-3GSDI only)
- Audio Input & Output
- Input
- 1 x Line-In (3.5mm Stereo) 2 channels of Embedded Audio
- Output
- 1 x Line-Out (3.5mm Stereo)
- Power
- Source
- DC 12V/0.8A
- PoE (Power over Ethernet)
- 802.3af
- Consumption
- Max 9.6W
- Dimensions
- Unit Dimensions (WHD)
- 5.28" x 1.45" x 5"
- Shipping
- Weight (approx.)
- 3 lbs.
Please see the "Tech Specs" tab for additional information on the Marshall 1080p60 Full HD Video Encoder w/ Embedded Audio.
