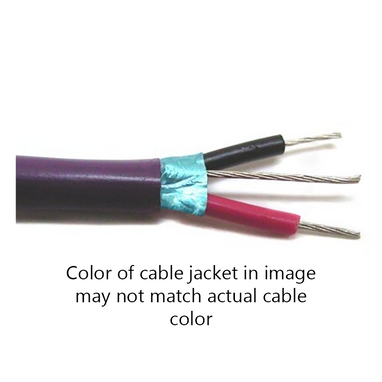

1800B Multi-Conductor 24 AWG Shielded Twisted Pair Cable 1000 ft

$635.00
SKU:
BEL-1800B-T5XU1000
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Belden Multi-Conductor 24 AWG Shielded Twisted Pair Cable 1000 ft

Belden 1800B is a multi-conductor shielded single twisted pair for use as interface cabling for AES/EBU digital audio, analog audio, communications, control and instrumentation.  The twisted pair is composed of 24 AWG stranded (7x32) tinned copper conductors, with an outer Beldfoil® shield for 100% coverage.  Belden 1800B contains a 24 AWG (7x32) stranded tinned copper drain wire.  Conductor insulation material is high-density polyethylene.  The outer jacket is polyvinyl chloride (PVC).  Its small 0.185 inch outer diameter makes for efficient use of space. This item is a 1,000 foot (304.8 m) box of 1800B cable with a "gray T5X" jacket color.

General Specifications:

  • Conductor: 1 twisted pair, 24 AWG stranded (7x32) tinned copper conductors
  • Insulation: Polyethylene
  • Shielding: Outer Beldfoil® shielded (100% coverage), 24 AWG tinned copper drain wire
  • Jacket: PVC (Polyvinyl Chloride)

Additional Specifications:

  • Overall Nominal Diameter: 0.185 inches
  • Maximum Recommended Pulling Tension: 16.5 lbs.
  • Minimum Bend Radius/Minor Axis: 2 inches
  • Specs
    • AWG
      • 24 AWG
    • Outer Diameter (OD)
      • 0.185 Inches (Nominal)
    • Stranding
      • Stranded (7 x 32)
    • Shielding
      • Outer Beldfoil® Shield + Tinned Copper Drain
    • # of Conductors
      • 1 Twisted Pair (2 Conductors)
    • Length
      • 1,000 ft. (305m)
    • Weight
      • 17 lbs (1,000 ft. Unreel Box)
    • Plenum (Y/N)
      • No

Please see the "Tech Specs" tab for additional information on the Belden Multi-Conductor 24 AWG Shielded Twisted Pair Cable 1000 ft.

To see more Belden products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Belden Multi-Conductor 24 AWG Shielded Twisted Pair Cable 1000 ft

Belden 1800B is a multi-conductor shielded single twisted pair for use as interface cabling for AES/EBU digital audio, analog audio, communications, control and instrumentation.  The twisted pair is composed of 24 AWG stranded (7x32) tinned copper conductors, with an outer Beldfoil® shield for 100% coverage.  Belden 1800B contains a 24 AWG (7x32) stranded tinned copper drain wire.  Conductor insulation material is high-density polyethylene.  The outer jacket is polyvinyl chloride (PVC).  Its small 0.185 inch outer diameter makes for efficient use of space. This item is a 1,000 foot (304.8 m) box of 1800B cable with a "gray T5X" jacket color.

General Specifications:

  • Conductor: 1 twisted pair, 24 AWG stranded (7x32) tinned copper conductors
  • Insulation: Polyethylene
  • Shielding: Outer Beldfoil® shielded (100% coverage), 24 AWG tinned copper drain wire
  • Jacket: PVC (Polyvinyl Chloride)

Additional Specifications:

  • Overall Nominal Diameter: 0.185 inches
  • Maximum Recommended Pulling Tension: 16.5 lbs.
  • Minimum Bend Radius/Minor Axis: 2 inches
  • Specs
    • AWG
      • 24 AWG
    • Outer Diameter (OD)
      • 0.185 Inches (Nominal)
    • Stranding
      • Stranded (7 x 32)
    • Shielding
      • Outer Beldfoil® Shield + Tinned Copper Drain
    • # of Conductors
      • 1 Twisted Pair (2 Conductors)
    • Length
      • 1,000 ft. (305m)
    • Weight
      • 17 lbs (1,000 ft. Unreel Box)
    • Plenum (Y/N)
      • No
