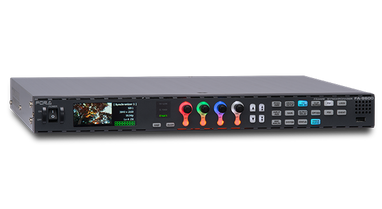

FA-9600 12G/3G/HD/SD Dual Channel Multi Purpose Signal Processor

FOR-A FA-9600 12G/3G/HD/SD Dual Channel Multi Purpose Signal Processor/Color Corrector
$3,700.00
SKU:
FOR-FA-9600
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Request Services

FOR-A 12G/3G/HD/SD Dual Channel Multi Purpose Signal Processor

Dual channel frame synchronizer, SDR/HDR processor, converter, is the next generation technology from FOR-A. Offering exceptional conversion format delivery, including 12G, 4K UHD, 1080p and SD/HD. Extremely versatile and easy to use. Build with the high reliability in mind. The FA-9600 is the ideal device for any HD transition to 4K UHD.

Applications

FA-9600 multipurpose signal processors offer essential features for emerging trends in video production. They are used in many professional settings.

Each of the two HD/SD inputs incorporates a frame synchronizer, and because the signal processor features 12G-SDI terminals, optional software opens the door to 4K UHD production. Adding an optional expansion card provides four more channels of 3G-SDI input or output.1 The FA-9600 is more than a basic frame synchronizer. Video conversion of all kinds is easy. A newly developed color processing circuit supports the latest gamut and dynamic range specifcations, and an optional converter circuit is available for up/down/cross conversion. Offering a wide range of audio processing, core features of remapping and gain adjustment, the FA-9600 can be expanded by adding an optional card that makes it an ideal standalone solution at transmission centers, in mobile production trucks, production studios, news stations, and other nonlinear editing and playout production environments.

*1: For details, see the expansion cards in “Options.”

HDR and Wide Color Gamut support

Supports and converts between the broad ITU-R BT.2020 gamut for 4K/8K and the conventional ITU-R BT.709 gamut for HD.
Compensates for differences among external devices by using EOTF/OETF corresponding to various HDR or SDR curves.
EOTF/OETD log curves and gamut can be registered from a computer.
Dynamic range conversion compatible with HLG, PQ, SDR and other log curves. Also compatible with S-Log3, Canon Log2, and other camera log curves.
Using FA-96AHDR Advanced Function Software option, enables compatible with ITU-R BT.2100-compliant dynamic range conversion.

Standard features

  • Dual channel frame synchronization, via 2 SDI input terminals and 4 outputs
  • Extensive professional video format support, from SD to HD formats
  • Connect a broad range of equipment—also equipped with HDMI ports1.
  • The FA-9600 comes standard with a dedicated application that runs on Windows, providing full access to many functions, and allows a wide variety of settings. Web server functionality is also implemented in the main unit, allowing adjustments2 to be made to various parameters from mobile and tablet devices.
  • New color processing circuit provides strong support in HD/4K UHD production. Useful not only at the input stage—when converting to unifed specifcations before input to a switcher or editing system—but also at the output stage, before HDR and SDR simulcasts, for example.
  • Conversion between SD/HD and 4K UHD3 and between SD and HD. Also enables cross-conversion between 1080i and 720p. (For these conversions, only Line1-side conversions effective.)

*1: Audio processing unavailable with HDMI connection.
*2: This feature is available for a limited number of function and parameters.
*3: When FA-964K is installed. Conversions that include 4K UHD are effective only Line 1-side. When from 12G-SDI to quad link 3G-SDI output and downconverted HD output are used concurrently, quad link 3G-SDI needs to be set to 2SI (2-Sample Interleave) Level-A format.

  • Video formats
    • Standard
      • 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/30p, 720/29.97p1, 720/25p1, 720/24p1, 720/23.98p1, 525/60, 625/50
    • Optional FA-964K install
      • (Additional resolutions) 3840 x 2160/60p*2, 3840 x 2160/59.94p*2, 3840 x 2160/50p2
  • Video inputs
    • Standard
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 23
      • HDMI: HDMI 2.0 LEVEL B (Type-A) x 1, Video signal only
    • Optional FA-964K install
      • In14 : 12G/3G/HD/SD-SDI: 12 Gbps to 270 Mbps
      • In2 : 3G/HD/SD-SDI: 3 Gbps to 270 Mbps
    • Optional FA-96EX3G44-R
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 45
  • Video outputs
    • Standard
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 41
      • HDMI: HDMI 2.0 LEVEL B (Type-A) x 1, Video signal only
    • Optional FA-964K install
      • OUT1a/1b4 : 12G/3G/HD/SD-SDI: 12 Gbps to 270 Mbps
      • OUT2a/2b : 3G/HD/SD-SDI: 3 Gbps to 270 Mbps
    • Optional FA-96EX3G44-R
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 45
  • Video functions
    • I/O Processing
      • Standard: 2 inputs, 2 distributed outputs (3G-SDI to SD-SDI)
      • 4K: 1 input (12G-SDI to SD-SDI) + 1 input (3G-SDI to SD-SDI); 1 input, 2 distributed outputs (12G-SDI to SD-SDI) + 1 input, 2 distributed outputs (3G-SDI to SD-SDI)
    • Processing
      • 4:2:2 digital component
    • Quantization
      • 12G/3G/HD/SD-SDI: 10-bit
    • Genlock input
      • BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL)
      • Tri-level sync: 0.6 Vp-p, 75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator, if unused)
    • Synchronizer modes
      • Frame, Line, AVDL, and Line (minimum) modes
    • Genlock Source Select
      • Reference signal, SDI input
  • System phase adjustment
    • Frame mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1 frame +1H, Min. delay: 1H
    • Line mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1 frame +2H, Min. delay: 2H
      • Max. delay: 1 frame +5H, Min. delay: 5H (quad link 3D-SDI)
    • AVDL mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 5H +1/2H, Min. delay: 1/2H (HD)
      • Max. delay: 1H +1/2H, Min. delay: 1/2H (SD)
    • Line (minimum) mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1H +700CLK, Min. delay: 700CLK
    • Converter1
      • 4K 2SI/SQD conversion, up/down/cross-conversion, aspect conversion, resizing and repositioning, I/P conversion, 3G-SDI Level A-B conversion, frame-rate simple conversion (x1/2, x2), frame delay conversion (Max. delay: 8 frames)
    • Converter1 Available formats6
      • 3840 x 2160/59.94p, 3840 x 2160/50p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60, 625/50
    • Converter2
      • I/P conversion, 3G-SDI Level A-B conversion, frame-rate simple conversion (x1/2, x2), frame delay conversion (Max. delay: 8 frames)
    • Converter2 Available formats6
      • 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/59.94i, 1080/50i
    • Color processing
      • Process amplifier, color space conversion, EOTF (de-gamma)/OEFT (gamma), color corrector, video clipping
    • Proc Amp
      • Video level: 0.0% to 200.0%
      • Chroma level: 0.0% to 200.0%
      • Black level: -20.0% to 100.0%
      • Hue: -179.8º to +180º
    • Color correction
      • Balance (RGB) mode and differential (YPbPr) mode
    • Video clipping
      • Knee Clip (RGB), YPbPr Clip
    • Color spaces
      • ITU-R BT.709/2020, user-defined (can be downloaded)
    • EOTF/OETF
      • HLG, SMPTE2048, ITU-R BT.1886, user-defined (can be downloaded)
  • Audio inputs
    • Embedded
      • 12G/3G/HD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous/asynchronous
      • SD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous
    • AES/EBU7
      • 1.0 Vp-p, unbalanced, 75Ω, BNC x 4 (Input/output switchable8),
      • Max. number of stereo inputs: 4, 32/44.1/48kHz, 16-bit to 24-bit
    • Optional FA-96AES-UBL
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Input/output switchable8),
      • Max. number of stereo inputs with standard: 8, 32/44.1/48kHz, 16-bit to 24-bit
    • Optional FA-96AES-UBL with UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 8 (Input/output switchable x48, output exclusive use x4),
      • Max. number of stereo inputs with standard: 8, 32/44.1/48kHz, 16-bit to 24-bit
  • Audio outputs
    • Embedded
      • 12G/3G/HD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
      • SD-SDI: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous
    • AES/EBU8
      • 1.0 Vp-p, unbalanced, 75Ω, BNC x 4 (Input/output switchable8),
      • Max. number of stereo outputs: 4, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBL
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Input/output switchable8),
      • Max. number of stereo outputs with standard: 8, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Output exclusive use),
      • Max. number of stereo outputs: 4, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBL with UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Output exclusive use x4 ,input/output switchable x48),
      • Max. number of stereo outputs: 8, 48kHz, 16/20/24-bit
  • Audio functions
    • Delay adjustment
      • Fixed mode: 5 ms to 1,000 ms (adjustable in 1 ms increments)
      • Tracking mode: Automatically follows video processing delay
    • Signal processing
      • Sampling rate converter (SRC), gain control, down-mixing, remapping, mute (per channel)
  • Main unit
    • Interfaces
      • Ethernet: 100BASE-TX/1000BASE-T, RJ-45 x 1
    • Temperature/humidity
      • 0°C to 40°C / 30% to 90% (no condensation)
    • Power
      • 100 V to 240 V AC ±10%, 50/60 Hz
    • Consumption
      • 70 VA (67W) (at 100 V to 120 V AC
      • 72 VA (68W) (at 220 V to 240 V AC)
    • Consumption with FA-96PS
      • 70 VA (65W) (at 100 V to 120 V AC
      • 86 VA (71W) (at 220 V to 240 V AC)
    • Consumption with all options installed9
      • 80 VA (77W) (at 100 V to 120 V AC
      • 86 VA (78W) (at 220 V to 240 V AC)
    • Dimensions/weight
      • 430 (W) x 44 (H) x 300 (D) mm / 3.5 kg
    • Consumables/replacement timing (under constant use at room temperature)
      • Power unit/approx. 5 years
      • Cooling fan/approx. 6 years
    • Included accessories
      • Operation manual PDF and control GUI software (CD-ROM), AC cord, rack mount brackets, retaining clip for AC cord and HDMI cord
  • Options
    • For slot A
      • FA-96EX3G44-R: 3G-SDI I/O card
      • FA-96EX12G06: 12G-SDI 6 output expansion card (In development)
    • For slots B
      • FA-96AES-UBL: AES audio I/O card
    • For slots B and C
      • FA-96AES-UBLC: AES audio output expansion cable
      • FA-96GPI: GPI I/O expansion card
    • For Slot D
      • FA-96DIN4-CBL: DIN 4 pin cable (In development)
    • For Slot E
      • FA-96DB9-CBL: GPI cable
    • Software options
      • FA-964K: 4K/12G-SDI-compatible software
      • FA-96UDC: Up/down/cross converter
      • FA-96AHDR Advanced function software for HDR
    • Other options
      • FA-96PS: Redundant power supply unit
      • FA-10RU: Remote control unit
      • FA-10DCCRU: Remote control unit

*1: HDMI not Supported
*2: Single Link 12G-SDI supported. Requires Optional FA-96EX3G44-R 3G-SDI I/O Expansion Card for quad link support
*3: Pass-through supported between IN2 and OUT2a.
*4: 3 Gbps to 270 Mbps between IN1 and OUT1a/OUT1b without FA-964K expansion.
*5: Pass-through supported between 4 inputs and 4 outputs
*6: Formats supported as of October 2017, FA-9600 Ver.1
*7: When using FA-96AES-UBLC, standard AES/EBU connectors are used exclusively for input
*8: Input or output able to be set for each AES/EBU connector (each stereo pair).
*9: Using FA-96PS, FA-96EX3G44-R, FA-96AES-UBL, and FA-96GPI.

Please see the "Tech Specs" tab for additional information on the FOR-A 12G/3G/HD/SD Dual Channel Multi Purpose Signal Processor.

To see more FOR-A products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: FOR-A 12G/3G/HD/SD Dual Channel Multi Purpose Signal Processor

Dual channel frame synchronizer, SDR/HDR processor, converter, is the next generation technology from FOR-A. Offering exceptional conversion format delivery, including 12G, 4K UHD, 1080p and SD/HD. Extremely versatile and easy to use. Build with the high reliability in mind. The FA-9600 is the ideal device for any HD transition to 4K UHD.

Applications

FA-9600 multipurpose signal processors offer essential features for emerging trends in video production. They are used in many professional settings.

Each of the two HD/SD inputs incorporates a frame synchronizer, and because the signal processor features 12G-SDI terminals, optional software opens the door to 4K UHD production. Adding an optional expansion card provides four more channels of 3G-SDI input or output.1 The FA-9600 is more than a basic frame synchronizer. Video conversion of all kinds is easy. A newly developed color processing circuit supports the latest gamut and dynamic range specifcations, and an optional converter circuit is available for up/down/cross conversion. Offering a wide range of audio processing, core features of remapping and gain adjustment, the FA-9600 can be expanded by adding an optional card that makes it an ideal standalone solution at transmission centers, in mobile production trucks, production studios, news stations, and other nonlinear editing and playout production environments.

*1: For details, see the expansion cards in “Options.”

HDR and Wide Color Gamut support

Supports and converts between the broad ITU-R BT.2020 gamut for 4K/8K and the conventional ITU-R BT.709 gamut for HD.
Compensates for differences among external devices by using EOTF/OETF corresponding to various HDR or SDR curves.
EOTF/OETD log curves and gamut can be registered from a computer.
Dynamic range conversion compatible with HLG, PQ, SDR and other log curves. Also compatible with S-Log3, Canon Log2, and other camera log curves.
Using FA-96AHDR Advanced Function Software option, enables compatible with ITU-R BT.2100-compliant dynamic range conversion.

Standard features

  • Dual channel frame synchronization, via 2 SDI input terminals and 4 outputs
  • Extensive professional video format support, from SD to HD formats
  • Connect a broad range of equipment—also equipped with HDMI ports1.
  • The FA-9600 comes standard with a dedicated application that runs on Windows, providing full access to many functions, and allows a wide variety of settings. Web server functionality is also implemented in the main unit, allowing adjustments2 to be made to various parameters from mobile and tablet devices.
  • New color processing circuit provides strong support in HD/4K UHD production. Useful not only at the input stage—when converting to unifed specifcations before input to a switcher or editing system—but also at the output stage, before HDR and SDR simulcasts, for example.
  • Conversion between SD/HD and 4K UHD3 and between SD and HD. Also enables cross-conversion between 1080i and 720p. (For these conversions, only Line1-side conversions effective.)

*1: Audio processing unavailable with HDMI connection.
*2: This feature is available for a limited number of function and parameters.
*3: When FA-964K is installed. Conversions that include 4K UHD are effective only Line 1-side. When from 12G-SDI to quad link 3G-SDI output and downconverted HD output are used concurrently, quad link 3G-SDI needs to be set to 2SI (2-Sample Interleave) Level-A format.

  • Video formats
    • Standard
      • 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/30p, 720/29.97p1, 720/25p1, 720/24p1, 720/23.98p1, 525/60, 625/50
    • Optional FA-964K install
      • (Additional resolutions) 3840 x 2160/60p*2, 3840 x 2160/59.94p*2, 3840 x 2160/50p2
  • Video inputs
    • Standard
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 23
      • HDMI: HDMI 2.0 LEVEL B (Type-A) x 1, Video signal only
    • Optional FA-964K install
      • In14 : 12G/3G/HD/SD-SDI: 12 Gbps to 270 Mbps
      • In2 : 3G/HD/SD-SDI: 3 Gbps to 270 Mbps
    • Optional FA-96EX3G44-R
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 45
  • Video outputs
    • Standard
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 41
      • HDMI: HDMI 2.0 LEVEL B (Type-A) x 1, Video signal only
    • Optional FA-964K install
      • OUT1a/1b4 : 12G/3G/HD/SD-SDI: 12 Gbps to 270 Mbps
      • OUT2a/2b : 3G/HD/SD-SDI: 3 Gbps to 270 Mbps
    • Optional FA-96EX3G44-R
      • 3G/HD/SD-SDI: 3 Gbps to 270 Mbps, 75Ω, BNC x 45
  • Video functions
    • I/O Processing
      • Standard: 2 inputs, 2 distributed outputs (3G-SDI to SD-SDI)
      • 4K: 1 input (12G-SDI to SD-SDI) + 1 input (3G-SDI to SD-SDI); 1 input, 2 distributed outputs (12G-SDI to SD-SDI) + 1 input, 2 distributed outputs (3G-SDI to SD-SDI)
    • Processing
      • 4:2:2 digital component
    • Quantization
      • 12G/3G/HD/SD-SDI: 10-bit
    • Genlock input
      • BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL)
      • Tri-level sync: 0.6 Vp-p, 75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator, if unused)
    • Synchronizer modes
      • Frame, Line, AVDL, and Line (minimum) modes
    • Genlock Source Select
      • Reference signal, SDI input
  • System phase adjustment
    • Frame mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1 frame +1H, Min. delay: 1H
    • Line mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1 frame +2H, Min. delay: 2H
      • Max. delay: 1 frame +5H, Min. delay: 5H (quad link 3D-SDI)
    • AVDL mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 5H +1/2H, Min. delay: 1/2H (HD)
      • Max. delay: 1H +1/2H, Min. delay: 1/2H (SD)
    • Line (minimum) mode
      • Horizontal: -1/2H to +1/2H
      • Vertical: -1/2 frames to +1/2 frames
      • Max. delay: 1H +700CLK, Min. delay: 700CLK
    • Converter1
      • 4K 2SI/SQD conversion, up/down/cross-conversion, aspect conversion, resizing and repositioning, I/P conversion, 3G-SDI Level A-B conversion, frame-rate simple conversion (x1/2, x2), frame delay conversion (Max. delay: 8 frames)
    • Converter1 Available formats6
      • 3840 x 2160/59.94p, 3840 x 2160/50p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60, 625/50
    • Converter2
      • I/P conversion, 3G-SDI Level A-B conversion, frame-rate simple conversion (x1/2, x2), frame delay conversion (Max. delay: 8 frames)
    • Converter2 Available formats6
      • 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/59.94i, 1080/50i
    • Color processing
      • Process amplifier, color space conversion, EOTF (de-gamma)/OEFT (gamma), color corrector, video clipping
    • Proc Amp
      • Video level: 0.0% to 200.0%
      • Chroma level: 0.0% to 200.0%
      • Black level: -20.0% to 100.0%
      • Hue: -179.8º to +180º
    • Color correction
      • Balance (RGB) mode and differential (YPbPr) mode
    • Video clipping
      • Knee Clip (RGB), YPbPr Clip
    • Color spaces
      • ITU-R BT.709/2020, user-defined (can be downloaded)
    • EOTF/OETF
      • HLG, SMPTE2048, ITU-R BT.1886, user-defined (can be downloaded)
  • Audio inputs
    • Embedded
      • 12G/3G/HD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous/asynchronous
      • SD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16 to 24-bit, synchronous
    • AES/EBU7
      • 1.0 Vp-p, unbalanced, 75Ω, BNC x 4 (Input/output switchable8),
      • Max. number of stereo inputs: 4, 32/44.1/48kHz, 16-bit to 24-bit
    • Optional FA-96AES-UBL
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Input/output switchable8),
      • Max. number of stereo inputs with standard: 8, 32/44.1/48kHz, 16-bit to 24-bit
    • Optional FA-96AES-UBL with UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 8 (Input/output switchable x48, output exclusive use x4),
      • Max. number of stereo inputs with standard: 8, 32/44.1/48kHz, 16-bit to 24-bit
  • Audio outputs
    • Embedded
      • 12G/3G/HD-SDI: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
      • SD-SDI: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous
    • AES/EBU8
      • 1.0 Vp-p, unbalanced, 75Ω, BNC x 4 (Input/output switchable8),
      • Max. number of stereo outputs: 4, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBL
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Input/output switchable8),
      • Max. number of stereo outputs with standard: 8, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Output exclusive use),
      • Max. number of stereo outputs: 4, 48kHz, 16/20/24-bit
    • Optional FA-96AES-UBL with UBLC7
      • 1.0 Vp-p, unbalanced, 75Ω, additional BNC x 4 (Output exclusive use x4 ,input/output switchable x48),
      • Max. number of stereo outputs: 8, 48kHz, 16/20/24-bit
  • Audio functions
    • Delay adjustment
      • Fixed mode: 5 ms to 1,000 ms (adjustable in 1 ms increments)
      • Tracking mode: Automatically follows video processing delay
    • Signal processing
      • Sampling rate converter (SRC), gain control, down-mixing, remapping, mute (per channel)
  • Main unit
    • Interfaces
      • Ethernet: 100BASE-TX/1000BASE-T, RJ-45 x 1
    • Temperature/humidity
      • 0°C to 40°C / 30% to 90% (no condensation)
    • Power
      • 100 V to 240 V AC ±10%, 50/60 Hz
    • Consumption
      • 70 VA (67W) (at 100 V to 120 V AC
      • 72 VA (68W) (at 220 V to 240 V AC)
    • Consumption with FA-96PS
      • 70 VA (65W) (at 100 V to 120 V AC
      • 86 VA (71W) (at 220 V to 240 V AC)
    • Consumption with all options installed9
      • 80 VA (77W) (at 100 V to 120 V AC
      • 86 VA (78W) (at 220 V to 240 V AC)
    • Dimensions/weight
      • 430 (W) x 44 (H) x 300 (D) mm / 3.5 kg
    • Consumables/replacement timing (under constant use at room temperature)
      • Power unit/approx. 5 years
      • Cooling fan/approx. 6 years
    • Included accessories
      • Operation manual PDF and control GUI software (CD-ROM), AC cord, rack mount brackets, retaining clip for AC cord and HDMI cord
  • Options
    • For slot A
      • FA-96EX3G44-R: 3G-SDI I/O card
      • FA-96EX12G06: 12G-SDI 6 output expansion card (In development)
    • For slots B
      • FA-96AES-UBL: AES audio I/O card
    • For slots B and C
      • FA-96AES-UBLC: AES audio output expansion cable
      • FA-96GPI: GPI I/O expansion card
    • For Slot D
      • FA-96DIN4-CBL: DIN 4 pin cable (In development)
    • For Slot E
      • FA-96DB9-CBL: GPI cable
    • Software options
      • FA-964K: 4K/12G-SDI-compatible software
      • FA-96UDC: Up/down/cross converter
      • FA-96AHDR Advanced function software for HDR
    • Other options
      • FA-96PS: Redundant power supply unit
      • FA-10RU: Remote control unit
      • FA-10DCCRU: Remote control unit

*1: HDMI not Supported
*2: Single Link 12G-SDI supported. Requires Optional FA-96EX3G44-R 3G-SDI I/O Expansion Card for quad link support
*3: Pass-through supported between IN2 and OUT2a.
*4: 3 Gbps to 270 Mbps between IN1 and OUT1a/OUT1b without FA-964K expansion.
*5: Pass-through supported between 4 inputs and 4 outputs
*6: Formats supported as of October 2017, FA-9600 Ver.1
*7: When using FA-96AES-UBLC, standard AES/EBU connectors are used exclusively for input
*8: Input or output able to be set for each AES/EBU connector (each stereo pair).
*9: Using FA-96PS, FA-96EX3G44-R, FA-96AES-UBL, and FA-96GPI.
