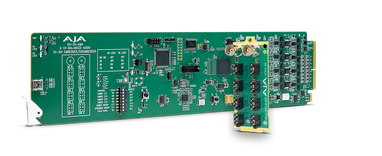

OG-3G-AMA 3G-SDI 4-Ch Analog Audio Embedder/Disembedder, Balance XLR

$795.00
SKU:
AJA-OG-3G-AMA
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

AJA 3G-SDI 4-Ch Analog Audio Embedder/Disembedder, Balance XLR

An openGear 8-Channel analog audio embedder/disembedder, OG-3G-AMA supports 3G-SDI input and output up to 1080p 60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality. Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high-density openGear’s 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

  • openGear compatible card
  • 3G-SDI Embedder/Disembedder
  • 8-Channel Balanced Analog Audio I/O
  • Controlled by DashBoard network control software and external DIP switch
  • 8x 3-Pin Terminal Block connectors (included)
  • Use with openGear 2RU frames including AJA’s OG-3-FR frame
  • Five year warranty

Download DashBoard Software

Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit:

http://www.opengear.tv/dashboard-software/#support_box

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

  • Flexible I/O
    • The modular rear panel allows custom I/O connections per card (included with individual cards).
  • Failsafe
    • The optional redundant power supply provides a secondary power source in the event of a primary power failure.
  • Ethernet Access
    • A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
  • AJA Quality Guaranteed
    • All AJA products are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.
  • AJA Mini-Matrix
    • Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.
    • Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
  • Video Formats
    • 2K
      • 2048 x 1080p
      • 2048 x 1080PsF
    • HD
      • 1920 x 1080p
      • 1920 x 1080PsF
      • 1920 x 1080i
      • 1280 x 720p
    • SD
      • 720 x 576i
      • 720 x 480i
  • Video Input Digital
    • 1x 3G-SDI BNC
      • SMPTE-259/292/424
  • Video Input Formats
    • 1x 3 Gb SDI (level A or B)
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
    • 1x 1.5 Gb SDI
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1x 270 Mb SDI
      • (SD) 625i 50
      • (SD) 525i 59.94
  • Video Output Digital
    • 1x 3G-SDI BNC
      • SMPTE-259/292/424
  • Video Output Formats
    • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc.
      • Video Out is undefined when no input.
    • Video Latency, time measured between video input and video output connector:
      • 3G level A = 3.2 usec
      • 3G level B = 6.1 usec
      • HD (1.5 Gb) = 6.3 usec
      • SD (270 Mb) = 17.2 usec
  • Audio Inputs and Outputs
    • Audio Connectors
      • 8 Analog Audio Connections (4 pairs total)
        • Each pair configurable to Inputs or Outputs
    • Digital Audio Converters
      • 24-bit
    • Embedded Audio
      • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
      • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
      • Incoming embedded audio can be passed, removed, or overridden.
      • 16 Channels supported on the SDI at any given time (8 of which can be from the analog inputs).
    • Embed Path Audio Latency, time measured between audio input and video output connector:
      • 1100 usec
    • Disembed Path Audio Latency, time measured between video input and audio output connector:
      • 1200 usec
    • Analog Audio Levels
      • Configured via Dashboard software:
        • Pro 1: 0 dBfs = +24 dBu
        • Pro 2: 0 dBfs = +18 dBu
        • Pro 3: 0 dBfs = +15 dBu
        • Consumer 1: 0 dBfs = +12 dBu
  • Controls
    • User Controls
      • External DIP switch
      • openGear DashBoard network control software via Windows, macOS or Linux
  • Shipping
    • Size (w x d x h)
      • openGear standard form factor, front slot and rear card. Two slots required for each card.
    • Weight
      • 0.5 lb (0.3 kg)
  • Power
    • openGear frame compatible
      • 5.0 watts max per card
  • Environment
    • Safe Operating Temperature
      • 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF)
      • -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity
      • 10-90% noncondensing
    • Operating Altitude
      • <3,000 meters (<10,000 feet)

Please see the "Tech Specs" tab for additional information on the AJA 3G-SDI 4-Ch Analog Audio Embedder/Disembedder, Balance XLR.

To see more AJA products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: AJA 3G-SDI 4-Ch Analog Audio Embedder/Disembedder, Balance XLR

An openGear 8-Channel analog audio embedder/disembedder, OG-3G-AMA supports 3G-SDI input and output up to 1080p 60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality. Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high-density openGear’s 2RU frames including AJA’s OG-3-FR 2RU frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

  • openGear compatible card
  • 3G-SDI Embedder/Disembedder
  • 8-Channel Balanced Analog Audio I/O
  • Controlled by DashBoard network control software and external DIP switch
  • 8x 3-Pin Terminal Block connectors (included)
  • Use with openGear 2RU frames including AJA’s OG-3-FR frame
  • Five year warranty

Download DashBoard Software

Dashboard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit:

http://www.opengear.tv/dashboard-software/#support_box

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

  • Flexible I/O
    • The modular rear panel allows custom I/O connections per card (included with individual cards).
  • Failsafe
    • The optional redundant power supply provides a secondary power source in the event of a primary power failure.
  • Ethernet Access
    • A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
  • AJA Quality Guaranteed
    • All AJA products are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.
  • AJA Mini-Matrix
    • Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.
    • Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
  • Video Formats
    • 2K
      • 2048 x 1080p
      • 2048 x 1080PsF
    • HD
      • 1920 x 1080p
      • 1920 x 1080PsF
      • 1920 x 1080i
      • 1280 x 720p
    • SD
      • 720 x 576i
      • 720 x 480i
  • Video Input Digital
    • 1x 3G-SDI BNC
      • SMPTE-259/292/424
  • Video Input Formats
    • 1x 3 Gb SDI (level A or B)
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
    • 1x 1.5 Gb SDI
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1x 270 Mb SDI
      • (SD) 625i 50
      • (SD) 525i 59.94
  • Video Output Digital
    • 1x 3G-SDI BNC
      • SMPTE-259/292/424
  • Video Output Formats
    • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc.
      • Video Out is undefined when no input.
    • Video Latency, time measured between video input and video output connector:
      • 3G level A = 3.2 usec
      • 3G level B = 6.1 usec
      • HD (1.5 Gb) = 6.3 usec
      • SD (270 Mb) = 17.2 usec
  • Audio Inputs and Outputs
    • Audio Connectors
      • 8 Analog Audio Connections (4 pairs total)
        • Each pair configurable to Inputs or Outputs
    • Digital Audio Converters
      • 24-bit
    • Embedded Audio
      • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
      • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
      • Incoming embedded audio can be passed, removed, or overridden.
      • 16 Channels supported on the SDI at any given time (8 of which can be from the analog inputs).
    • Embed Path Audio Latency, time measured between audio input and video output connector:
      • 1100 usec
    • Disembed Path Audio Latency, time measured between video input and audio output connector:
      • 1200 usec
    • Analog Audio Levels
      • Configured via Dashboard software:
        • Pro 1: 0 dBfs = +24 dBu
        • Pro 2: 0 dBfs = +18 dBu
        • Pro 3: 0 dBfs = +15 dBu
        • Consumer 1: 0 dBfs = +12 dBu
  • Controls
    • User Controls
      • External DIP switch
      • openGear DashBoard network control software via Windows, macOS or Linux
  • Shipping
    • Size (w x d x h)
      • openGear standard form factor, front slot and rear card. Two slots required for each card.
    • Weight
      • 0.5 lb (0.3 kg)
  • Power
    • openGear frame compatible
      • 5.0 watts max per card
  • Environment
    • Safe Operating Temperature
      • 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF)
      • -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity
      • 10-90% noncondensing
    • Operating Altitude
      • <3,000 meters (<10,000 feet)

Documentation: AJA 3G-SDI 4-Ch Analog Audio Embedder/Disembedder, Balance XLR
