BH-B216A2B12 2 RU 12G+ 2x16 BNC Coax Bulkhead Panel

$507.00 $493.00
(You save $14.00)
SKU:
BIT-BH-B216A2B12
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

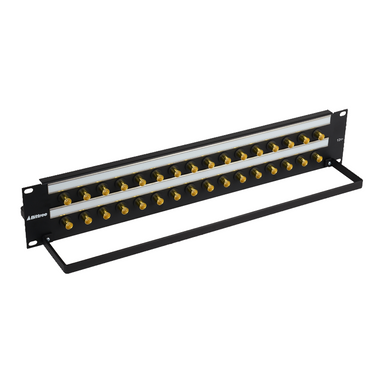

Bittree 2 RU 12G+ 2x16 BNC Coax Bulkhead Panel

The Bittree BH-B216A2B12 is a 2 RU BNC High-Bandwidth Coaxial Bulkhead Panel with two rows of 16 connectors each and two designation strips.  The 75-ohm, low return loss BNC jacks are designed for 20 GHz high-bandwidth performance for SD-SDI, HD-SDI 3 Gb/s, 3D, UHD, 4K and 8K applications.  The BNC-to-BNC jacks are compliant with SMPTE 292M, 424M, 2081-1 and 2082-1.

Features

  • 20 GHz high-bandwidth performance
  • Applications include SD-SDI, HD-SDI, 3 Gb/s, 3D, UHD, 4K and 8K
  • Two 3-inch (7.62 cm) deep removable lacing bars for cable dressing
  • Two designation strips
  • Specs
    • Connector Bandwidth
      • 20 GHz
    • Connections
      • BNC
    • Applications
      • SD-SDI, HD-SDI, 3 Gb/s, 3D, UHD, 4K and 8K
    • Layout
      • 2 x 16 (2 rows of 16 connectors)
    • Height
      • 2-RU (3.5 Inches)
    • Weight
      • 3 lbs
    • Front Panel Color
      • Black

Please see the "Tech Specs" tab for additional information on the Bittree 2 RU 12G+ 2x16 BNC Coax Bulkhead Panel.

To see more Bittree products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Bittree 2 RU 12G+ 2x16 BNC Coax Bulkhead Panel

The Bittree BH-B216A2B12 is a 2 RU BNC High-Bandwidth Coaxial Bulkhead Panel with two rows of 16 connectors each and two designation strips.  The 75-ohm, low return loss BNC jacks are designed for 20 GHz high-bandwidth performance for SD-SDI, HD-SDI 3 Gb/s, 3D, UHD, 4K and 8K applications.  The BNC-to-BNC jacks are compliant with SMPTE 292M, 424M, 2081-1 and 2082-1.

Features

  • 20 GHz high-bandwidth performance
  • Applications include SD-SDI, HD-SDI, 3 Gb/s, 3D, UHD, 4K and 8K
  • Two 3-inch (7.62 cm) deep removable lacing bars for cable dressing
  • Two designation strips
  • Specs
    • Connector Bandwidth
      • 20 GHz
    • Connections
      • BNC
    • Applications
      • SD-SDI, HD-SDI, 3 Gb/s, 3D, UHD, 4K and 8K
    • Layout
      • 2 x 16 (2 rows of 16 connectors)
    • Height
      • 2-RU (3.5 Inches)
    • Weight
      • 3 lbs
    • Front Panel Color
      • Black

Documentation: Bittree 2 RU 12G+ 2x16 BNC Coax Bulkhead Panel
