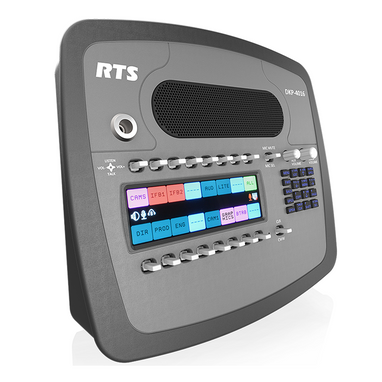

RTS 16 Key Wall-Mount Intercom Keypanel
The DKP-4016W keypanel is part of the KP-4016-Series of high-performance intercom panels and stations. It delivers superior quality audio using OMNEO technology from Bosch with Dante™ audio over IP using either copper or fiber. The audio is free of noise, delay and other artifacts that can be occasionally found in legacy technologies. A rich set of connectors is standard, including GPIO (General Purpose Input Output) and RC (Rear Connector) kit. Backward compatibility with previous generations of matrices, including analog technology, is an essential part of the design specifications.
The DKP-4016W utilizes the latest generation of wide angle TFT displays, providing superior clarity, resolution, and longer display life. It features high-quality readability under a variety of lighting conditions.
The RTS DKP-4016W 16-key wall-mount intercom station can be installed in any convenient location or where rack and desktop space is at a premium, but communications access is needed. See the DKP-4016 on our store for a desktop version!
DKP-4016W Features
- OMNEO Open Media Networking Standard
- Superior digital, high-quality audio over IP, the branded IP-based solution from Bosch.
- Backward compatibility
- All KP-Series keypanels are compatible with older technologies such as analog audio in USOC and 568-B connector formats.
- UX
- Enhanced user interface, simple and intuitive menu navigation.
- Advanced signal processing and AD / DA
- High-quality audio experience, free of noise, echo, delay and other artifacts sometimes present in legacy technologies.
- User-friendly, high-resolution color display
- Unified design, including color, contrast, resolution and wide viewing angle.
- Standardized connectors
- All previous hardware connector options (RC, GPI, and ancillary items) are now standard.
- Inputs (Matrix)
- Type
- Balanced
- Typical Input Level
- +8dBu
- Typical Input Impedance
- 20kΩ
- Maximum Input Level
- +20dBu
- Supported Bandwidth
- 100Hz to 20kHz
- Aux Input
- Type
- Balanced
- Typical Input Level
- +8dBu
- Typical Input Impedance
- 20kΩ
- Maximum Input Level
- +20dBu
- Supported Bandwidth
- 100Hz to 20kHz
- Outputs (Matrix)
- Type
- Balanced
- Typical Output Level
- +8dBu
- Typical Output Impedance
- 600Ω
- Maximum Output Level
- +20dBu
- Frequency Response
- 100Hz to 20kHz
- Mic/Line Output
- Type
- Balanced
- Typical Output Level
- +8dBu
- Typical Output Impedance
- 600Ω
- Maximum Output Level
- +20dBu
- Frequency Response
- 100Hz to 20kHz
- Power Supply
- Type
- Internal
- AC Input
- 100-240VAC 50/60 Hz
- Power Consumption
- Nominal
- 25 Watts
- Maximum
- 39 Watts
- Maximum Volt Amps
- 63 VA
- Dimensions
- Unit Dimensions (WHD)
- 10.63" x 3.60" x 9.35"
- Shipping
- Weight (approx.)
- 6 lbs.
Please see the "Tech Specs" tab for additional information on the RTS 16 Key Wall-Mount Intercom Keypanel.
