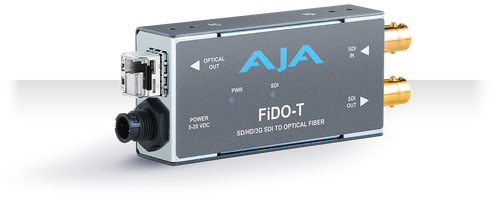

AJA 1 Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
OG-FIDO-T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables - useful for eliminating ground loop problems.
Features
- Video Formats: 100 Mbps - 3 Gbps, format agnostic
- Inputs: 1x 3G-SDI, BNC connector
- Outputs: 1x Multi-Mode optical fiber, LC connector; 1x 3G-SDI, BNC (loop of input)
- Automatic detection and re-clocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Wavelength: 850 nm
- Optical Power: -7dBm (min), -2dBm (max)
- Power: 2.5 watts
- Hot-swap capable
- Compatible with DFR-8321 and OG3 openGear frames
- Connectivity
The 3G-SDI input is re-clocked with best-in-class input jitter tolerance. A re-clocked looping 3G-SDI output is also provided. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Supports Multi-Mode fiber cable.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
- Flexible I/O
- The modular rear panel allows custom I/O connections per card (included with individual cards).
- Failsafe
- The optional redundant power supply provides a secondary power source in the event of a primary power failure.
- Ethernet Access
- A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
- AJA Quality Guaranteed
- All AJA products are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, insuring you are up and running again as quickly as possible.
- AJA Mini-Matrix
- Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.
- Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
- Video
- Formats
- 100 Mbps - 3 Gbps, format agnostic
- Input Digital
- 1-Channel independent 3G-SDI, SMPTE-259/292/424
- Output Digital
- 1-Channel independent 3G-SDI Loop out, SMPTE-259/292/424
- 1-Channel Multi-Mode LC Fiber connector, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Power: -7dBm (min), -2dBm (max)
- Extinction Ratio: 7.5dB (Typ)
- Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- Shipping
- Size (w x d x h)
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Power
- openGear frame compatible
- 2.5 watts max per card
- Environment
- Safe Operating Temperature
- 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF)
- -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity
- 10-90% noncondensing
- Operating Altitude
- <3,000 meters (<10,000 feet)
Please see the "Tech Specs" tab for additional information on the AJA 1 Channel 3G-SDI to Multi-Mode LC Fiber Transmitter.
