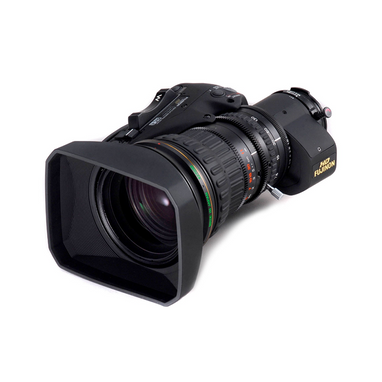

Fujinon HD ENG/EFP Lens w/ 2X Ext & Servo Zoom & Focus
The ZA17x7.6BERD-S6 is a member of Fujinon's Select Series of value priced standard HD ENG/EFP Style lenses. It comes equipped with a 2X range extender, plus digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired.
ZA17x7.6BERD-S6 Features
- Lens
- Focal length of 7.6 - 130 mm. With 2X Extender, 15.2 - 260 mm.
- Digital servo for zoom & focus for full studio control, robotics, teleconferencing and other applications
- 17X zoom range and 2X Extender
- f/1.8 maximum relative aperture at 7.6-102mm and f/2.3 at 130mm
- Digi Power
- New digital servo control system to enhance zoom lens performance. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. Via RS232 connection, it is now possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications, and raising the level for all production environments.
- Digital Quick Zoom
- Quick Zoom speed is improved to 0.7 seconds end to end. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with just the push of a button. Releasing the button returns the lens to the previously selected zoom position.
- Digital Find System
- The Focused Intelligent Network Diagnosis system aids in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters.
- Inner Focus System
- Focusing by fixing the front lens and then moving the lens in the barrel back-and-forth. Provides a stable grip since the length of the lens is unchanged while focusing. In addition, since the front lens doesn't rotate while focusing, there is very little effect when using a Polarizing filter.
Options & Accessories
- SS-13D: Digi Full Servo Kit "RD" Type - Includes:
- ERD-10A-D01M - ENG DIGI Zoom Demand
- MCA-6BC - Saw Tooth Mounting Clamp
- EPD-31-D02 - DIGI Focus Demand
- EBF-1 - DIGI Focus Demand Cable
- MCS-36 - Mounting Clamp for EPD-31-D02
- Specs
- Camera Format
- 2/3"
- Focal Length
- 1X: 7.6 - 130 mm
- 2X: 15.2 - 260 mm
- Zoom Range
- 17X
- Extender
- 2X
- Maximum Relative Aperture:
- 1 : 1.8 (7.6 - 102 mm)
- 1 : 2.5 (130 mm)
- M.O.D. from the Image Plane
- 0.84 m
- M.O.D. from the Front of Lens
- 0.6 m
- Diameter x Length
- 85 x 203 mm
- Shipping Weight (approx.)
- 6 lbs.
Please see the "Tech Specs" tab for additional information on the Fujinon HD ENG/EFP Lens w/ 2X Ext & Servo Zoom & Focus.
To see more Fujinon products available on the Broadcast Integration Services website, please click or tap here.
