Grass Valley Single Rear Panel Dual 1x3 Operating Mode with Bypass Relays for HDA-3951

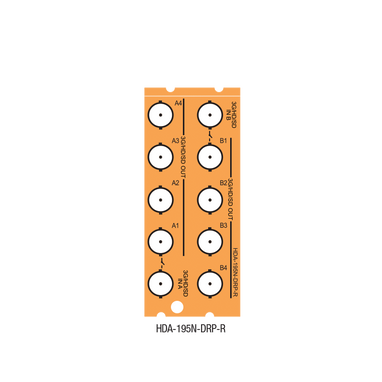

The Grass Valley HDA-395N-3SRP-R is a single rear connector panel designed to accommodate the HDA-3951 digital video distribution amp. It fits in the Densité 3 frame and provides dual channel 3G/HD/SD inputs w/ relay bypass and 6 3G/HD/SD outputs, 3 for each channel.
HDA-395N-3SRP-R Features
- Utilize in the Densité 3 frame
- Single rear connector panel
- Use with HDA-3951 Dual Channel 3G/HD/SD SDI Video Distribution Amplifier (DA)
- 2 Dual channel 3G/HD/SD inputs w/ relay bypass
- 6 3G/HD/SD outputs, 3 for each channel
- Electrical Inputs (2)
- Signal
- SMPTE ST 259M-C (270 Mb/s)
- SMPTE ST 292M (1.485, 1.485/ 1.001 Gb/s)
- SMPTE ST 424M (2.970, 2.970/ 1.001 Gb/s)
- EN50 83-9 DVI-ASI (270 Mb/s)
- Return loss
- >15 dB up to 1.5 GHz
- >10 dB from 1.5 GHz to 3 GHz
- Electrical Outputs (6 total - 3 per each input)
- Signal
- SMPTE ST 259M-C (270 Mb/s)
- SMPTE ST 292M (1.485, 1.485/ 1.001 Gb/s)
- SMPTE ST 424M (2.970, 2.970/ 1.001 Gb/s)
- EN50 83-9 DVI-ASI (270 Mb/s, all outputs)
- Return loss
- >15 dB up to 1.5 GHz
- >10 dB from 1.5 GHz to 3 GHz
- Jitter (wideband)
- <0.2 UI p-p
- Rise/fall time (Reclocker on)
- <135 ps, 20% to 80%, for HD and 3G
- 400 – 800 ps, 20% to 80%, for SD
- Rise/fall time (Reclocker off)
- <135 ps for all formats (3G, HD, SD)
Please see the "Tech Specs" tab for additional information on the Grass Valley Single Rear Panel Dual 1x3 Operating Mode with Bypass Relays for HDA-3951.
To see more Grass Valley products available on the Broadcast Integration Services website, please click or tap here.
Technical Specifications: Grass Valley Single Rear Panel Dual 1x3 Operating Mode with Bypass Relays for HDA-3951
The Grass Valley HDA-395N-3SRP-R is a single rear connector panel designed to accommodate the HDA-3951 digital video distribution amp. It fits in the Densité 3 frame and provides dual channel 3G/HD/SD inputs w/ relay bypass and 6 3G/HD/SD outputs, 3 for each channel.
HDA-395N-3SRP-R Features
- Utilize in the Densité 3 frame
- Single rear connector panel
- Use with HDA-3951 Dual Channel 3G/HD/SD SDI Video Distribution Amplifier (DA)
- 2 Dual channel 3G/HD/SD inputs w/ relay bypass
- 6 3G/HD/SD outputs, 3 for each channel
- Electrical Inputs (2)
- Signal
- SMPTE ST 259M-C (270 Mb/s)
- SMPTE ST 292M (1.485, 1.485/ 1.001 Gb/s)
- SMPTE ST 424M (2.970, 2.970/ 1.001 Gb/s)
- EN50 83-9 DVI-ASI (270 Mb/s)
- Return loss
- >15 dB up to 1.5 GHz
- >10 dB from 1.5 GHz to 3 GHz
- Electrical Outputs (6 total - 3 per each input)
- Signal
- SMPTE ST 259M-C (270 Mb/s)
- SMPTE ST 292M (1.485, 1.485/ 1.001 Gb/s)
- SMPTE ST 424M (2.970, 2.970/ 1.001 Gb/s)
- EN50 83-9 DVI-ASI (270 Mb/s, all outputs)
- Return loss
- >15 dB up to 1.5 GHz
- >10 dB from 1.5 GHz to 3 GHz
- Jitter (wideband)
- <0.2 UI p-p
- Rise/fall time (Reclocker on)
- <135 ps, 20% to 80%, for HD and 3G
- 400 – 800 ps, 20% to 80%, for SD
- Rise/fall time (Reclocker off)
- <135 ps for all formats (3G, HD, SD)
