SDA-1162-3SRP Single Rear Conn Panel with 3 SDI Outputs for SDA-1162

$90.00
SKU:
GVG-SDA-1162-3SRP
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

Grass Valley Single Rear Conn Panel with 3 SDI Outputs for SDA-1162

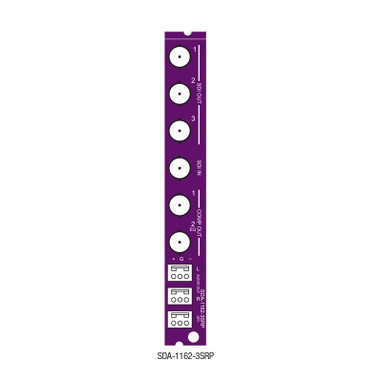

The Grass Valley SDA-1162-3SRP is a single rear connector panel designed to accommodate the SDA-1162 digital video distribution amp. It fits in the Densité 3 frame and provides 1 SDI input, 3 SDI outputs, 2 analog video outputs, and balanced analog stereo output.

SDA-1162-3SRP Features

  • Utilize in the Densité 3 frame
  • Single rear connector panel
  • Use with SDA-1162 SDI Distribution Amplifier (DA) with Composite and Audio Analog Monitoring
  • 1 SDI input
  • 3 SDI outputs, 2 analog video outputs, and balanced analog stereo output
  • Inputs (1)
    • Signal
      • SMPTE 259M-C (270 Mb/s)
    • Return Loss
      • >15 dB up to 540 MHz
  • Outputs (3)
    • Signal
      • SMPTE 259M-C (270 Mb/s)
    • Return Loss
      • >15 dB for up to 540 MHz
    • Jitter
      • <0.2 UI p-p (wideband)
  • Analog Video Output Monitoring (2)
    • Signal
      • NTSC (525/60) SMPTE 170M
      • PAL-M (525/60) ITU-R BT.470-6
      • PAL (625/50) ITU-R BT.470-6
    • Return Loss
      • >35 dB up to 5.75 MHz
  • Analog Audio Output Monitoring (2)
    • Signal
      • Balanced analog stereo audio
    • Impedance
      • <55Ω
    • Max. level
      • +24 dBu / 600Ω

Please see the "Tech Specs" tab for additional information on the Grass Valley Single Rear Conn Panel with 3 SDI Outputs for SDA-1162.

To see more Grass Valley products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Grass Valley Single Rear Conn Panel with 3 SDI Outputs for SDA-1162

The Grass Valley SDA-1162-3SRP is a single rear connector panel designed to accommodate the SDA-1162 digital video distribution amp. It fits in the Densité 3 frame and provides 1 SDI input, 3 SDI outputs, 2 analog video outputs, and balanced analog stereo output.

SDA-1162-3SRP Features

  • Utilize in the Densité 3 frame
  • Single rear connector panel
  • Use with SDA-1162 SDI Distribution Amplifier (DA) with Composite and Audio Analog Monitoring
  • 1 SDI input
  • 3 SDI outputs, 2 analog video outputs, and balanced analog stereo output
  • Inputs (1)
    • Signal
      • SMPTE 259M-C (270 Mb/s)
    • Return Loss
      • >15 dB up to 540 MHz
  • Outputs (3)
    • Signal
      • SMPTE 259M-C (270 Mb/s)
    • Return Loss
      • >15 dB for up to 540 MHz
    • Jitter
      • <0.2 UI p-p (wideband)
  • Analog Video Output Monitoring (2)
    • Signal
      • NTSC (525/60) SMPTE 170M
      • PAL-M (525/60) ITU-R BT.470-6
      • PAL (625/50) ITU-R BT.470-6
    • Return Loss
      • >35 dB up to 5.75 MHz
  • Analog Audio Output Monitoring (2)
    • Signal
      • Balanced analog stereo audio
    • Impedance
      • <55Ω
    • Max. level
      • +24 dBu / 600Ω
