PDS-1620R-NS Multi-Mount Rackmount Power 16-Outlet 20A

$426.00 Add to cart to see discounted price.
SKU:
MA-PDS-1620R-NS
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

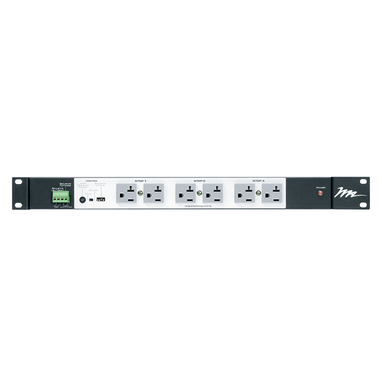

Middle Atlantic Multi-Mount Rackmount Power 16-Outlet 20A

Compact and convenient with flexible mounting options, the Middle Atlantic PDS-1620R-NS is ideal for your rackmount power distribution needs!  This compact, 1-RU panel provides 16 total outlets of 20 amp power, 10 unswitched outlets on the rear panel and 6 sequenced outlets on the front panel. The sequenced outlets can help protect equipment such as power amplifiers by applying power only after source devices are powered on.

The PDS-1620R-NS can be mounted in a typical rackmount configuration or by rotating the rack ears 90 degrees, the panel can be mounted vertically.

Features

  • 16 outlets: 10 rear distribution outlets (unswitched) and 6 front panel (sequenced)
  • 20 Amps
  • 3-step sequencing on the front panel outlets
  • Compact 1-RU (1.75") form factor
  • 9-foot cord with front panel power switch
  • UL listed
  • Specs
    • Outlets
      • 10 rear distribution outlets (always on)
      • 6 front panel outlets (sequenced)
    • Amps
      • 20
    • Number of Circuits
      • 1
    • Power Cord Length
      • 9 feet
    • Product Dimensions (WHD)
      • 19" x 1.75" x 5" (1-RU)
    • Shipping Weight
      • 9 lbs.

Please see the "Tech Specs" tab for additional information on the Middle Atlantic Multi-Mount Rackmount Power 16-Outlet 20A.

To see more Middle Atlantic products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: Middle Atlantic Multi-Mount Rackmount Power 16-Outlet 20A

Compact and convenient with flexible mounting options, the Middle Atlantic PDS-1620R-NS is ideal for your rackmount power distribution needs!  This compact, 1-RU panel provides 16 total outlets of 20 amp power, 10 unswitched outlets on the rear panel and 6 sequenced outlets on the front panel. The sequenced outlets can help protect equipment such as power amplifiers by applying power only after source devices are powered on.

The PDS-1620R-NS can be mounted in a typical rackmount configuration or by rotating the rack ears 90 degrees, the panel can be mounted vertically.

Features

  • 16 outlets: 10 rear distribution outlets (unswitched) and 6 front panel (sequenced)
  • 20 Amps
  • 3-step sequencing on the front panel outlets
  • Compact 1-RU (1.75") form factor
  • 9-foot cord with front panel power switch
  • UL listed
  • Specs
    • Outlets
      • 10 rear distribution outlets (always on)
      • 6 front panel outlets (sequenced)
    • Amps
      • 20
    • Number of Circuits
      • 1
    • Power Cord Length
      • 9 feet
    • Product Dimensions (WHD)
      • 19" x 1.75" x 5" (1-RU)
    • Shipping Weight
      • 9 lbs.

Documentation: Middle Atlantic Multi-Mount Rackmount Power 16-Outlet 20A
