MCP-90-18 Gooseneck Panel Microphone - 18 inch

Price only available upon request due to manufacturer agreement.

Use the form or call (855) 777-3984 for pricing.

SKU:
RTS-MCP-90-18
Request Price
Email (Required)
Phone Number
Zip Code (Required)
(Used for tax calculation only. Privacy is important to us.)
Bulk purchase?
Additional Comments
Need our expert design and installation services?
Contact Us
Design and Installation Services

BIS has an established history of supporting our customers with custom integration to achieve highly functional systems and sub-systems.

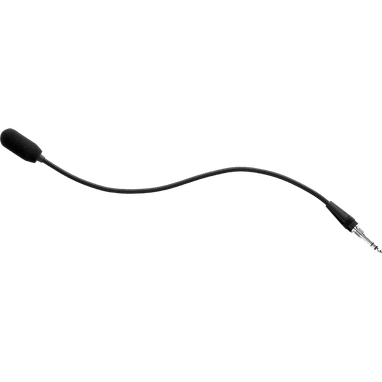

RTS Gooseneck Panel Microphone - 18 inch

The MCP-90 series microphones are phantom-powered "back-electret" miniature condenser gooseneck microphones. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering, response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 series microphones are mechanically designed for quick, easy mounting to RTS keypanels. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors.

The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.

MCP-90-18 Features

  • Cardioid polar pattern
  • Frequency response 100Hz to 15,000Hz
  • 18-inch neck
  • Specially designed windscreen to prevent microphone popping and distortion in normal operation.
  • Specs
    • Generation Element
      • Miniature Condenser
      • Back-Electret
    • Frequency Response
      • 100Hz to 15KHz
    • Polar Pattern
      • Cardioid
    • Dynamic Range
      • 102dB
    • Panel Microphone Connector Type
      • TRS, 1/4" phone jack w/ threaded female metal bushing
    • Color
      • Non-reflecting black
    • Power Supply
      • Phantom-Powered
    • Power Requirements
      • 1.5 to 9VDC
    • Current Consumption
      • <500μA
    • Dimensions
      • 18" (457.2 mm)
  • Shipping
    • Weight (approx.)
      • 2 lbs.

Please see the "Tech Specs" tab for additional information on the RTS Gooseneck Panel Microphone - 18 inch.

To see more RTS products available on the Broadcast Integration Services website, please click or tap here.

Technical Specifications: RTS Gooseneck Panel Microphone - 18 inch

The MCP-90 series microphones are phantom-powered "back-electret" miniature condenser gooseneck microphones. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering, response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 series microphones are mechanically designed for quick, easy mounting to RTS keypanels. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors.

The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC.

MCP-90-18 Features

  • Cardioid polar pattern
  • Frequency response 100Hz to 15,000Hz
  • 18-inch neck
  • Specially designed windscreen to prevent microphone popping and distortion in normal operation.
  • Specs
    • Generation Element
      • Miniature Condenser
      • Back-Electret
    • Frequency Response
      • 100Hz to 15KHz
    • Polar Pattern
      • Cardioid
    • Dynamic Range
      • 102dB
    • Panel Microphone Connector Type
      • TRS, 1/4" phone jack w/ threaded female metal bushing
    • Color
      • Non-reflecting black
    • Power Supply
      • Phantom-Powered
    • Power Requirements
      • 1.5 to 9VDC
    • Current Consumption
      • <500μA
    • Dimensions
      • 18" (457.2 mm)
  • Shipping
    • Weight (approx.)
      • 2 lbs.

Documentation: RTS Gooseneck Panel Microphone - 18 inch
